Introduction to TB63 Series Steel‑Ply System
TB63 Series Steel‑Ply System is a mature modular tool‑type steel‑frame formwork solution for cast‑in‑place concrete walls and columns. Different from heavy full‑steel formwork and high‑cost aluminum formwork, it combines rigid hot‑rolled steel frame with high‑reuse film‑faced plywood panels.
The maximum weight of single panel is only 38 kg, which can be carried by two workers. Installation mainly relies on wedge pins, formwork hooks and U‑clamps, only a hammer is required on site. It can be widely used in multi‑story residential buildings, commercial buildings and public infrastructure projects. When matched with TABLE desktop early‑stripping slab formwork, it can realize a complete set of wall‑column‑slab forming solution for construction sites in CIS region.
Material, Specifications & CIS‑Oriented Performance
TB63 adopts Q345B / #45 hot‑rolled profiles with anti‑corrosion surface treatment, equipped with durable bamboo‑wood or PVC foam plywood.
- Width: 100‑600 mm, modular increment 50 mm
- Height: 300‑3000 mm, modular increment 300 mm

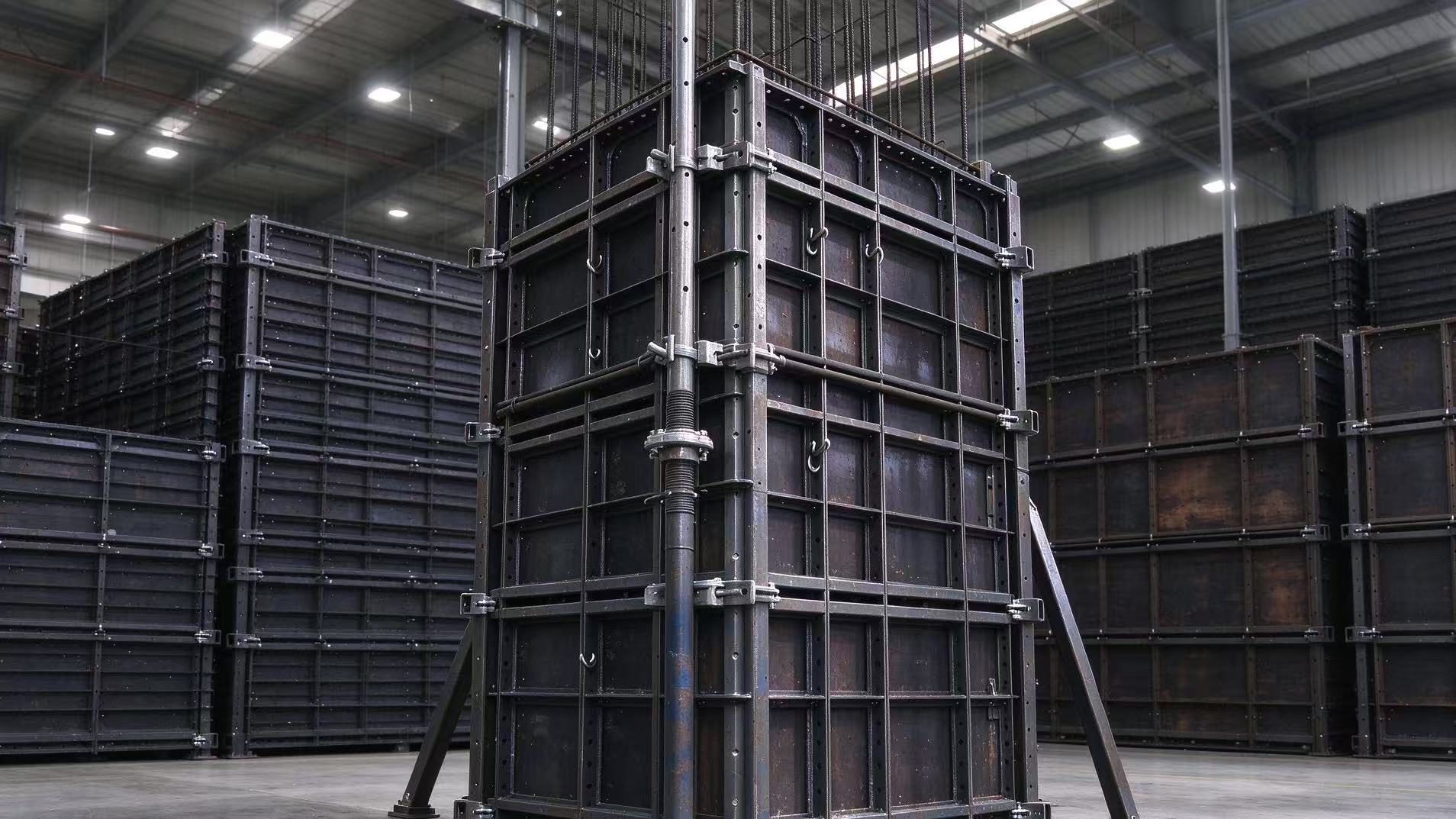

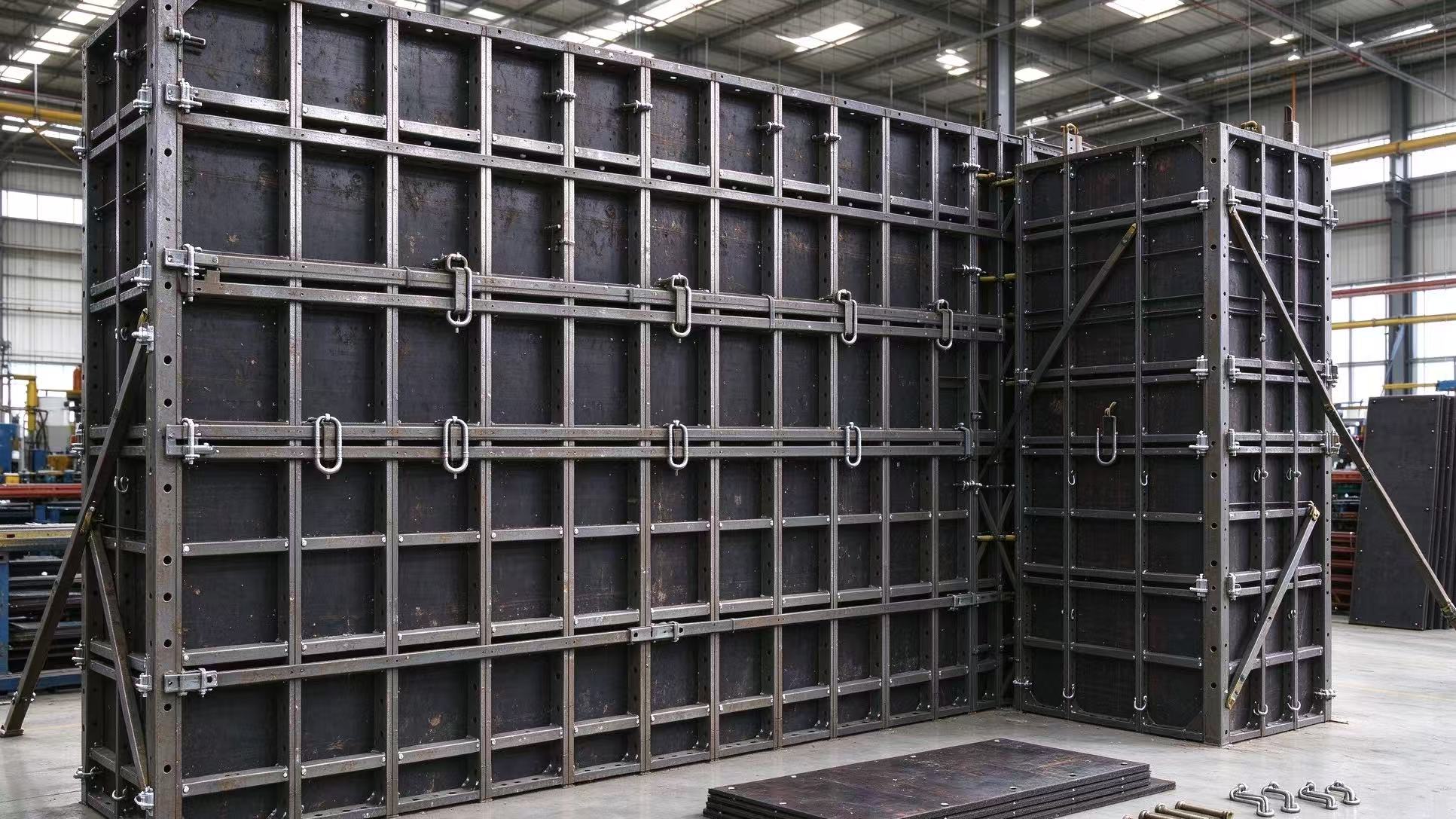

Complete product portfolio includes standard wall panels, adjustable column form, inner‑corner & outer‑corner formwork plus full set supporting accessories. Modular size design greatly reduces on‑site cutting work.
Many construction sites in Russia and Central‑Asia suffer from extremely cold winters, large temperature difference between day and night, and long‑term open‑air storage of formwork assets. Anti‑rust treated steel frame effectively resists corrosion and deformation during outdoor stacking, which is very friendly for local form‑rental fleets. Compared with disposable timber formwork, TB63 achieves high turnover cycles and helps rental companies cope with volatile lumber price in EAEU markets.
Core Advantages for CIS Contractors & Rental Firms

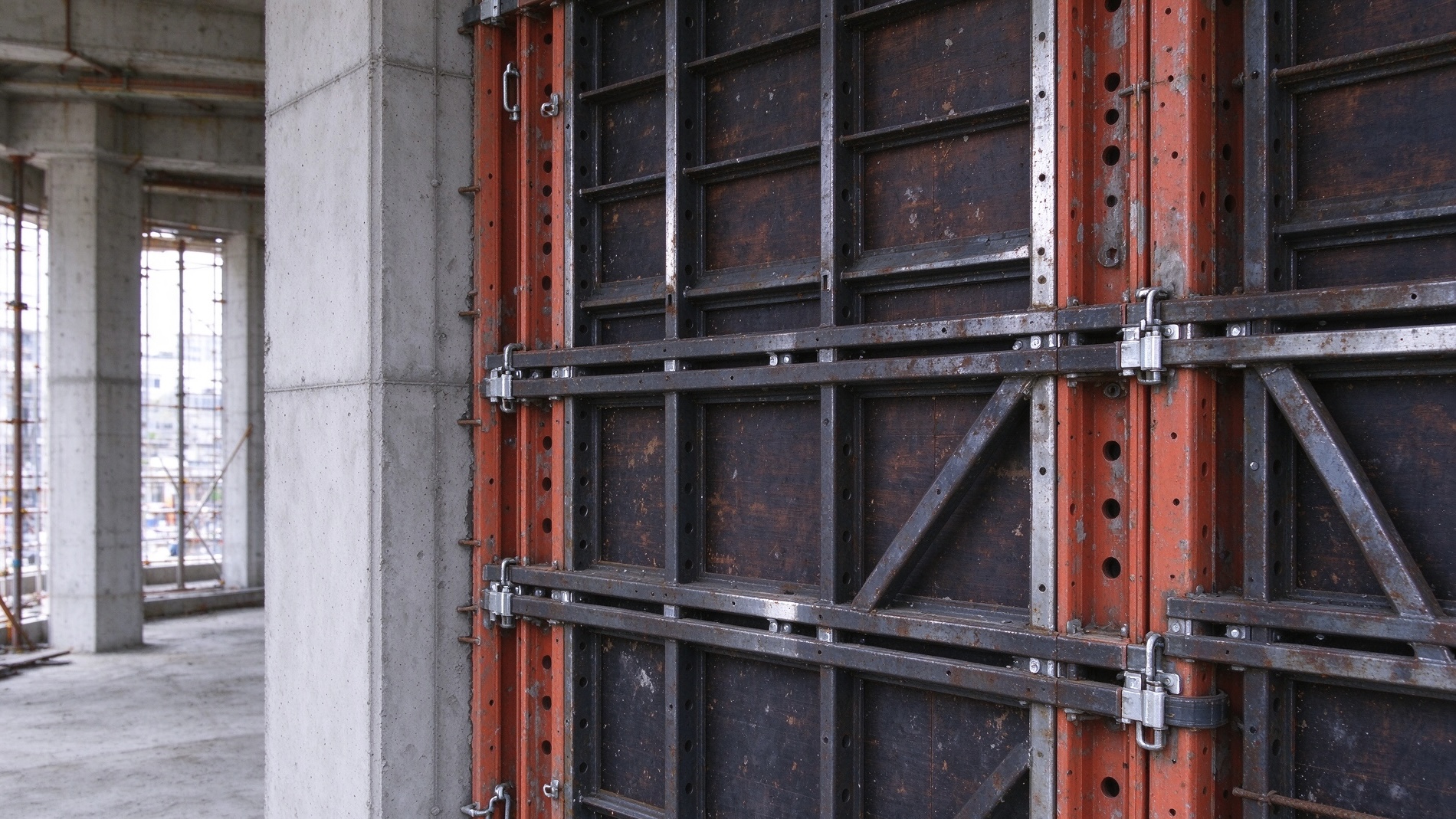

- Low‑skill manual assembly Light‑weight panels support manual transportation. Workers complete connection and locking by hammering wedge pins, no highly‑skilled carpenters required. Panels can be pre‑assembled on flat ground then lifted by tower crane, greatly improving erection efficiency and easing the labor‑shortage pain point common in Russia and Central‑Asia.
- Strong system compatibility & rich accessories Full accessory kit contains formwork hooks, wedge pins, U‑clamps, diagonal braces, adjustable frames and corner pieces. TB63 can work seamlessly with TABLE early‑stripping slab formwork, adjustable steel props and 48 mm standard steel pipes. Enterprises can continue to use existing shoring assets without large‑scale equipment replacement. It adapts to regular walls, special‑shaped walls, square and adjustable column structures.
- High turnover & easy maintenance Steel‑frame structure brings long service life. After pouring, it delivers fair‑faced concrete surface, decreasing later plastering workload. Components are standardized, easy for warehouse sorting, inspection and repairing. Damaged plywood can be replaced separately without scrapping the whole steel frame, lowering long‑term operating cost for rental business.
Main Application Scenarios in Russia & Central Asia

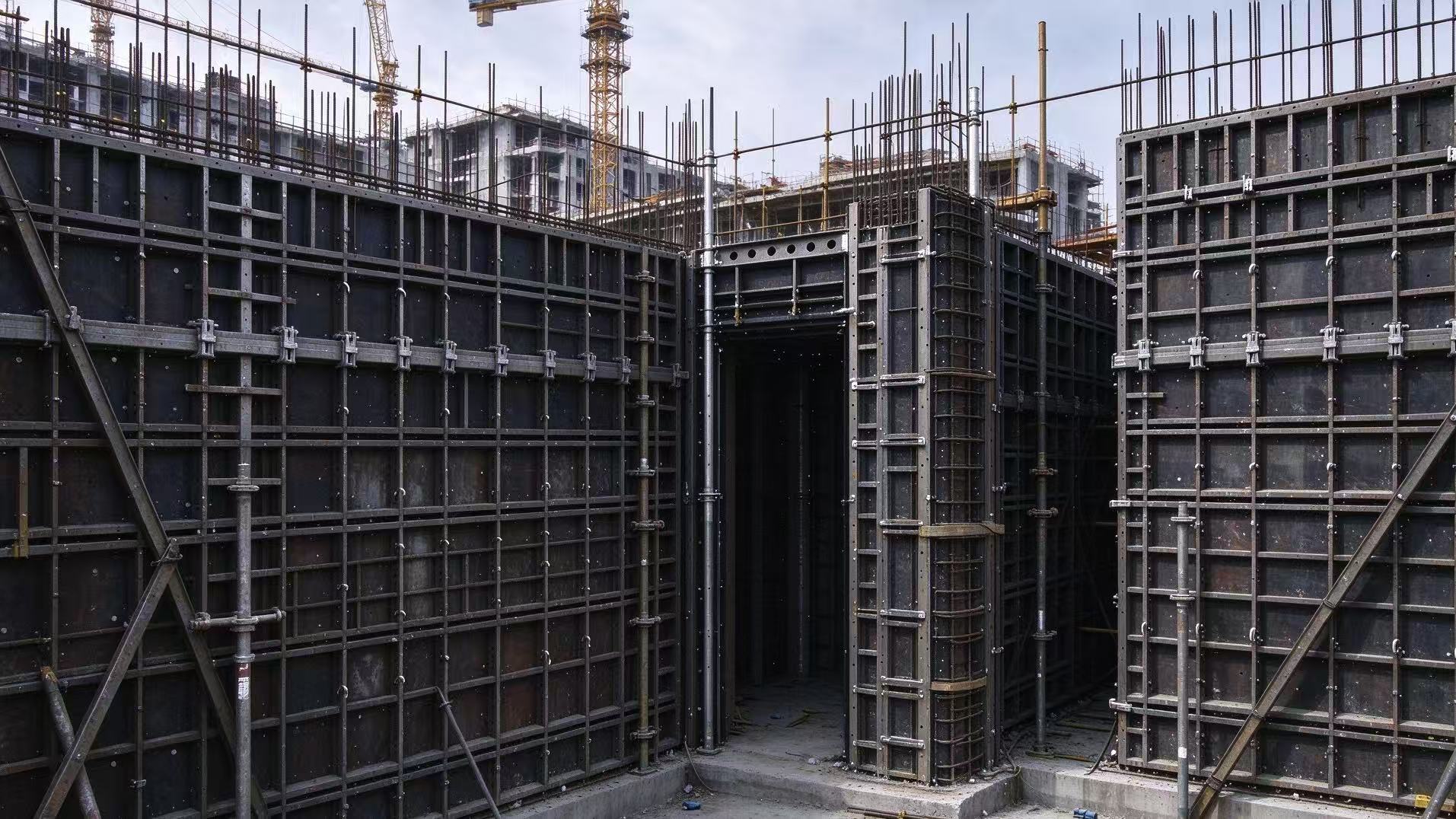

TB63 Steel‑Ply System fits mainstream project types across CIS countries: ‑ Multi‑story residential and affordable housing projects in Russian cities; ‑ Villa construction and old‑building renovation projects in Uzbekistan and southern Kazakhstan; ‑ Public facilities and medium‑small‑size commercial complexes in Central‑Asian countries; ‑ Square‑column and shear‑wall concrete forming for scattered infrastructure.
For form‑rental companies, unified modular dimensions simplify cross‑regional fleet turnover and over‑land transportation among EAEU member states. Panels can be stacked outdoors during idle periods without complex daily maintenance.
Technical & Customs Support for CIS Importers
TABLE provides GOST‑related certification documents to speed‑up customs clearance for Russian and Central‑Asian importers. Our Russian‑speaking technical team supports formwork layout drawing, material quantity calculation and remote on‑site installation guidance.
As a full‑range formwork manufacturer, we supply wall, column and slab systems together to avoid accessory mismatch caused by mixed‑brand procurement. Factory direct bulk supply plus stable China‑Central‑Asia land‑logistics guarantee delivery cycle. Continuous spare‑parts supply supports remote construction yards and rental warehouses.
Closing Remarks
For contractors and form‑rental enterprises operating in CIS markets, TB63 Series Steel‑Ply fills the gap between expensive aluminum formwork and short‑life timber shuttering. It balances manual operability, high reusability and competitive total cost, becoming a cost‑effective modular wall‑and‑column forming option for various construction demands of Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan and Turkmenistan.
Contact our international‑sales team to get technical datasheets, layout samples and region‑targeted quotations.
