Traditional formwork reinforcement heavily relies on double steel pipes, square tubes and on‑site welding. This old‑school method brings heavy weight, complex assembly, poor reusability and high sorting costs after project completion. For timber, plastic and aluminium formwork projects, contractors are looking for lighter, standardised, no‑welding alternatives. The TABLE Modular Waler System is a patented light‑steel solution built to replace conventional double steel‑pipe waler systems on modern construction sites.
What Is TABLE Modular Waler System?
It is a patent‑registered modular light‑steel waler reinforcement system manufactured from Q355 galvanized sheet roll‑formed into C‑shaped light‑steel keels. Keel lengths follow digital 300‑mm multiples: 600 mm,1500 mm,2700 mm etc. Two main specifications cover different working conditions:
4×6 Light‑steel keel (3 kg/m): For timber formwork & plastic shear‑wall formwork
6×8 Light‑steel keel (5.3 kg/m): For aluminium alloy formwork & industrial wood moulds
Standard stock lengths range from 300 mm up to 3900 mm, with custom lengths available up to 6000 mm. All connections are mechanical bolt‑on assembly, zero welding required. Digital‑length labelling enables easy warehouse sorting, no cutting or modification needed for reuse on subsequent building projects.
Core Components
All accessories are standardized off‑the‑site manufactured parts:
C‑Channel Light‑Steel Keel: Main horizontal back‑corrugation member

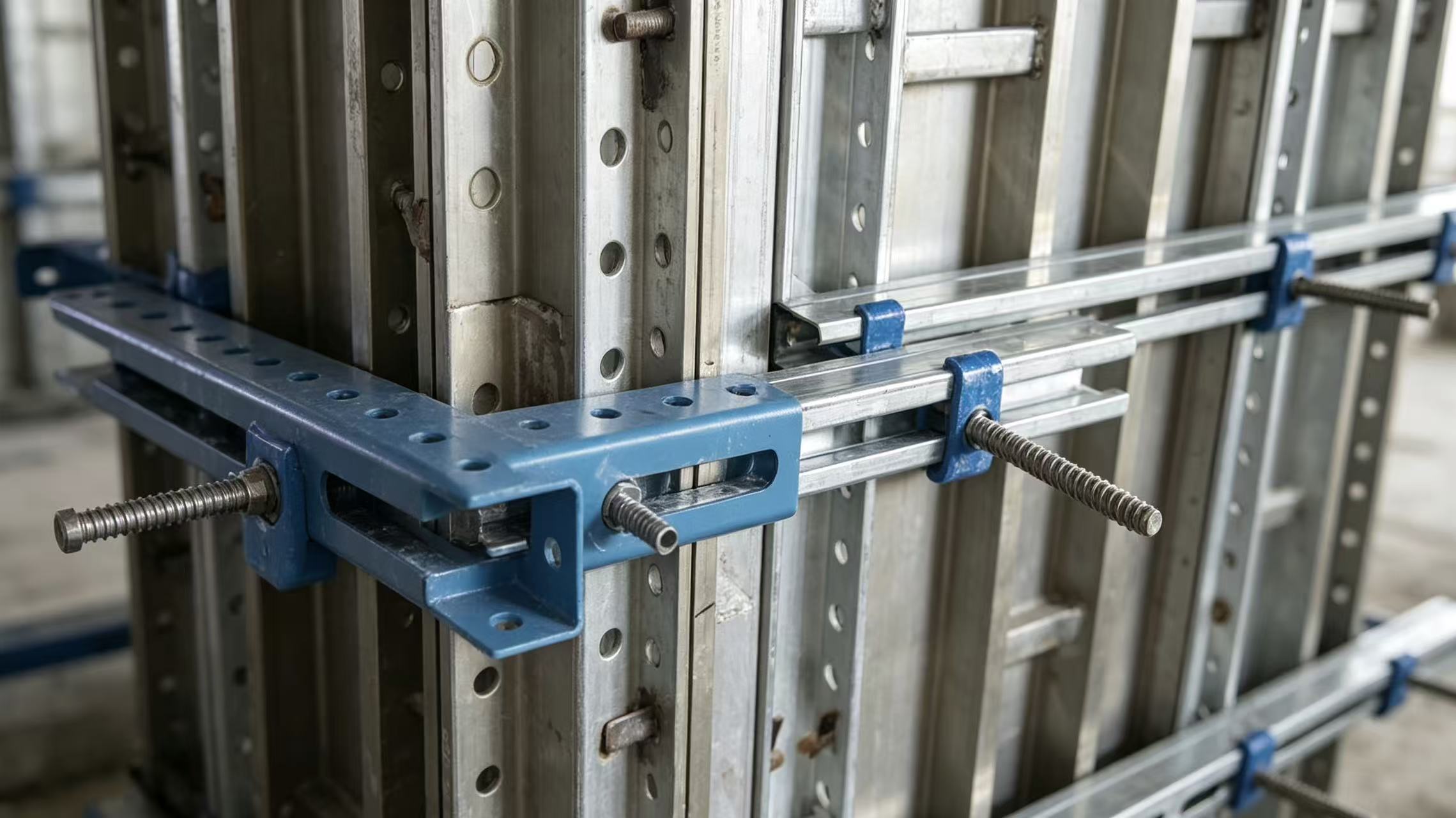

Corner Connector / Right‑Angle Connector: Reinforce internal & external wall corners
Extension Connector: Splice keels to achieve longer working lengths
Diagonal Brace Connector: Stabilise column and wall form assemblies
Wall‑bolt Fastening Pad: Distribute tension force from tie rods
Fixed‑Length Detachable Tapered Wall Screw: Eliminates plastic sleeves and cement supports
Three Key Technical Breakthroughs
✅ Breakthrough 1: Minimal‑part connection concept
Complete joint assembly only needs three main components. Fast installation reduces labour hours at site.
✅ Breakthrough 2: Single waler design
Tie‑rods do not pass through the backing keel. Single light‑steel keel replaces traditional double steel‑pipe sets, lowering material weight and handling work.
✅ Breakthrough 3: Detachable tapered wall screw
Removes dependency on disposable plastic sleeves and cement spacers. Parts can be fully recovered and reused.
Main System Advantages
🔹 Light‑Weight Performance: Far lighter than traditional double round‑steel‑pipe reinforcement; easier for workers to lift and position.
🔹 No‑Welding Modular Assembly: All mechanical bolt connections, no hot‑work on construction site.
🔹 Ultra‑High Re‑use Rate: Over 500 turnover cycles. Low amortization cost for repeated projects.
🔹 Digital‑Length Management: Lengths in multiples of 300 mm, easy classification, storage and transport, no on‑site cutting.
🔹 Broad Compatibility：Works with timber, plastic, 63‑series /65‑series aluminium formwork and high‑strength steel formwork; compatible with both tie‑plate and tie‑rod systems.
🔹 High‑Quality Raw Material: Q355 / Q700 high‑strength alloy steel with anti‑rust galvanized surface treatment for long service life.
Typical Application Scenarios
1. Shear‑wall reinforcement for timber & plastic formwork (4×6 system)
2. Wall & column backing for aluminium alloy formwork (6×8 system)
3. Concrete column formwork corner reinforcement
4. Core‑wall, basement and high‑rise residential building projects
Q&A: Frequently Asked Questions About TABLE Modular Waler System
Q1: What formwork types can this modular waler system match?
A: Two specifications for different scenarios. The 4×6 keel suits wood and plastic shear‑wall formwork. The heavier‑duty 6×8 keel is designed for aluminium formwork and industrial wood mould. It is compatible with 63‑series,65‑series aluminium systems, tie‑plate and tie‑rod structures.
Q2: Does this waler need on‑site welding?
A: No welding at all. Every connection uses standard mechanical connectors and bolts. This improves site safety and ensures components remain intact for repeated turnover.
Q3: What is the turnover capacity and cost performance?
A: The light‑steel keel can achieve more than 500 reuse cycles. Since no cutting or modification is required, rectification costs between different jobs are minimal. For multi‑phase residential or commercial projects, amortized cost per concrete square metre is significantly lower than conventional double steel‑pipe solutions.
