Introduction: The Pain Points of Traditional Formwork Reinforcement
In the construction industry, formwork reinforcement has long been a labor-intensive and costly process. Traditional double steel pipe systems, channel steel, and square steel tube reinforcement methods come with significant drawbacks: heavy weight that makes handling difficult, complex on-site welding requirements, low reusability across projects, and high transportation and storage costs. These inefficiencies not only slow down construction timelines but also drive up overall project expenses.
Enter the TABLE Modular Waler System — a patented light steel product that is revolutionizing the formwork industry with its innovative design, exceptional strength, and unmatched versatility.
What is the TABLE Modular Waler System?

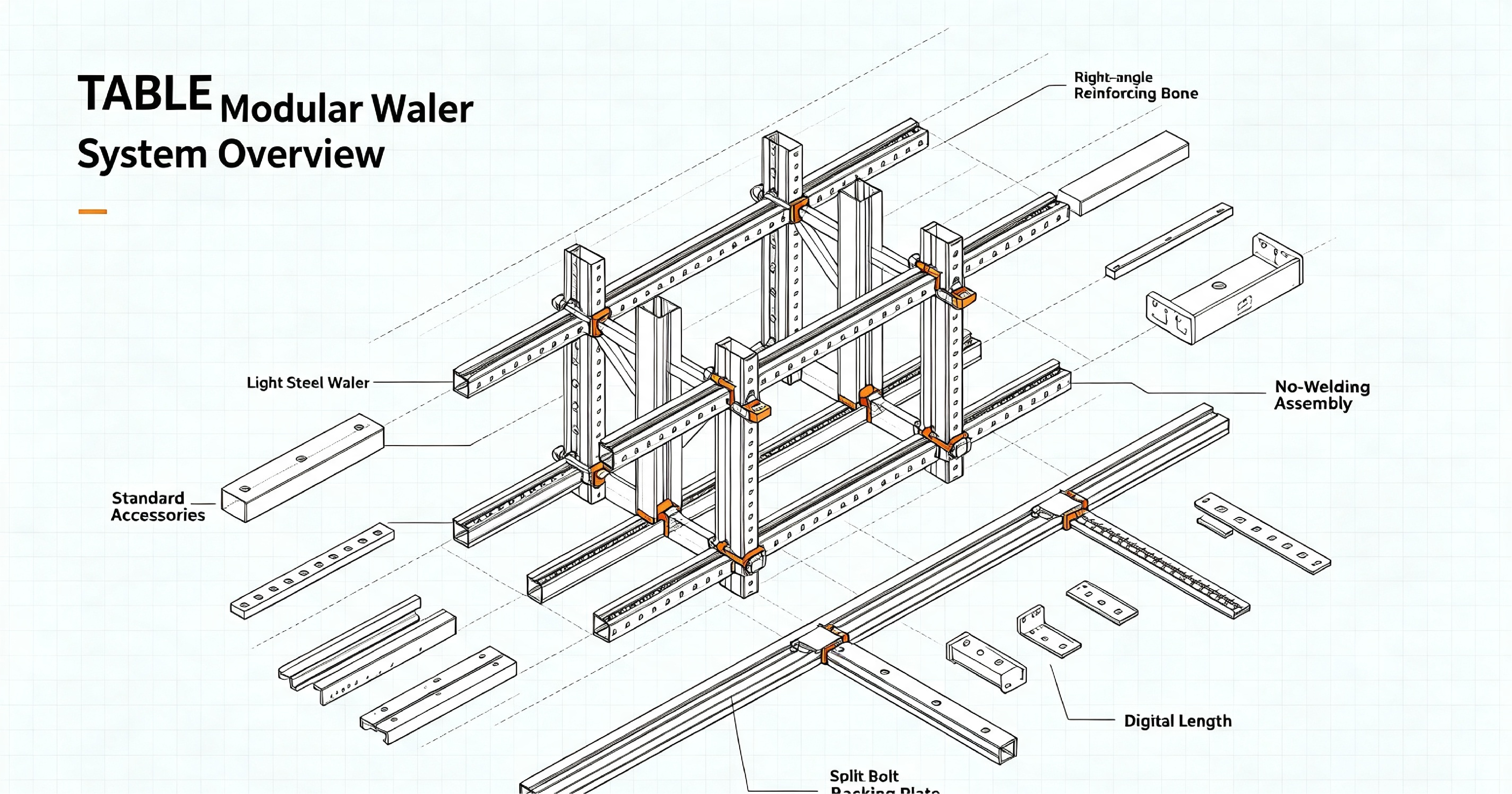

The TABLE Modular Waler System is a no-welding, combined light steel keel reinforcement system manufactured from high-quality Q355 galvanized sheet rolled into an inner C-shaped light steel keel. This innovative system represents a paradigm shift in how construction teams approach formwork reinforcement.

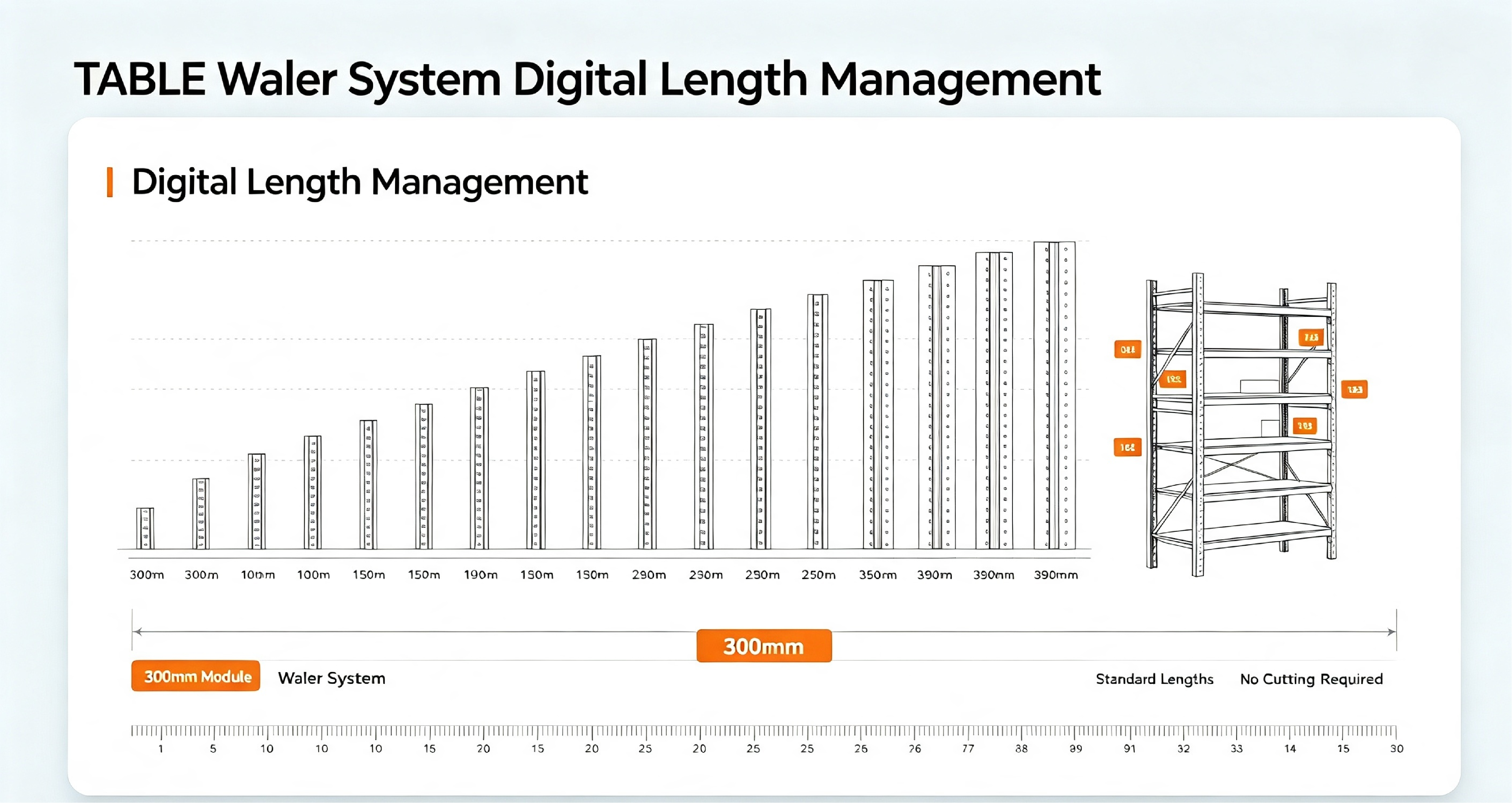

Digital Length Design
One of the standout features of the system is its digitized keel length design. All keels are manufactured in lengths that are multiples of 300mm — such as 600mm, 1500mm, 2700mm, and so on. The integer number directly corresponds to the keel number, making inventory management and on-site selection incredibly straightforward.
Standardized Accessories
The system features minimal accessories, all of which are standard parts. These include:
- Internal right-angle reinforcements
- External corner pull reinforcements
- Extension connectors
- Diagonal brace connectors
- Horizontal and vertical conversion connectors
- Wall bolt fastening pads
Digital Management System
With digital management, there is no need for manual numbering. Returning materials to the warehouse for sorting is effortless, and components require no modification — they can be used directly at the next construction site, significantly reducing waste and improving efficiency.
Core System Advantages
The TABLE Modular Waler System stands out from traditional reinforcement methods with its exceptional features:
| Feature | Benefit |
| Q700 High Strength Alloy Steel | Exceptional structural integrity and load-bearing capacity |
| Light Weight | Easy handling, reduced labor costs, improved safety |
| Long Service Life | Over 500 reuses, significantly lowering amortization costs |
| Rustproof Treatment | Durable in various weather conditions, reduced maintenance |
| No-Welding Assembly | Faster installation, no specialized labor required |
| Industry Innovation | Patented design representing the future of formwork |
Two System Configurations for Every Need
The TABLE Modular Waler System comes in two primary configurations to suit different formwork types and project requirements.
4X6 Reinforcement System
Designed for wood formwork and plastic formwork (shear walls), the 4X6 system directly replaces traditional double round steel pipe or square steel pipe reinforced back corrugation.
Specifications:
- 44×60 Light steel keel
- Weight: 3kg/m
Key differences from traditional systems:
1. Significantly lighter weight
2. Single keel replaces double pipes for easier operation
3. Guarantees straightness for superior finish quality
6X8 Reinforcement System
Engineered for aluminum alloy formwork and industrial wood molding molds, the 6X8 system replaces traditional double channel steel or double rectangular steel tube reinforced back corrugation.
Specifications:
- 60×80 Light steel keel
- Weight: 5.3kg/m
Key differences from traditional systems:
1. Lightweight design for easier handling
2. Single keel replaces double components
3. No welding required — high reuse rate and low maintenance costs
4. Easy storage and transportation
Flexible Length Options
Both systems offer flexible length configurations to match your specific project needs:
Standard lengths (QGLG6484-LL): 300, 600, 900, 1200, 1500, 1800, 2100, 2400, 2700, 3000, 3300, 3600, 3900mm
Customized lengths: Any length within 6000mm can be manufactured to order
Three Breakthrough Innovations
The TABLE Modular Waler System introduces three game-changing innovations that set it apart from every other reinforcement system on the market.

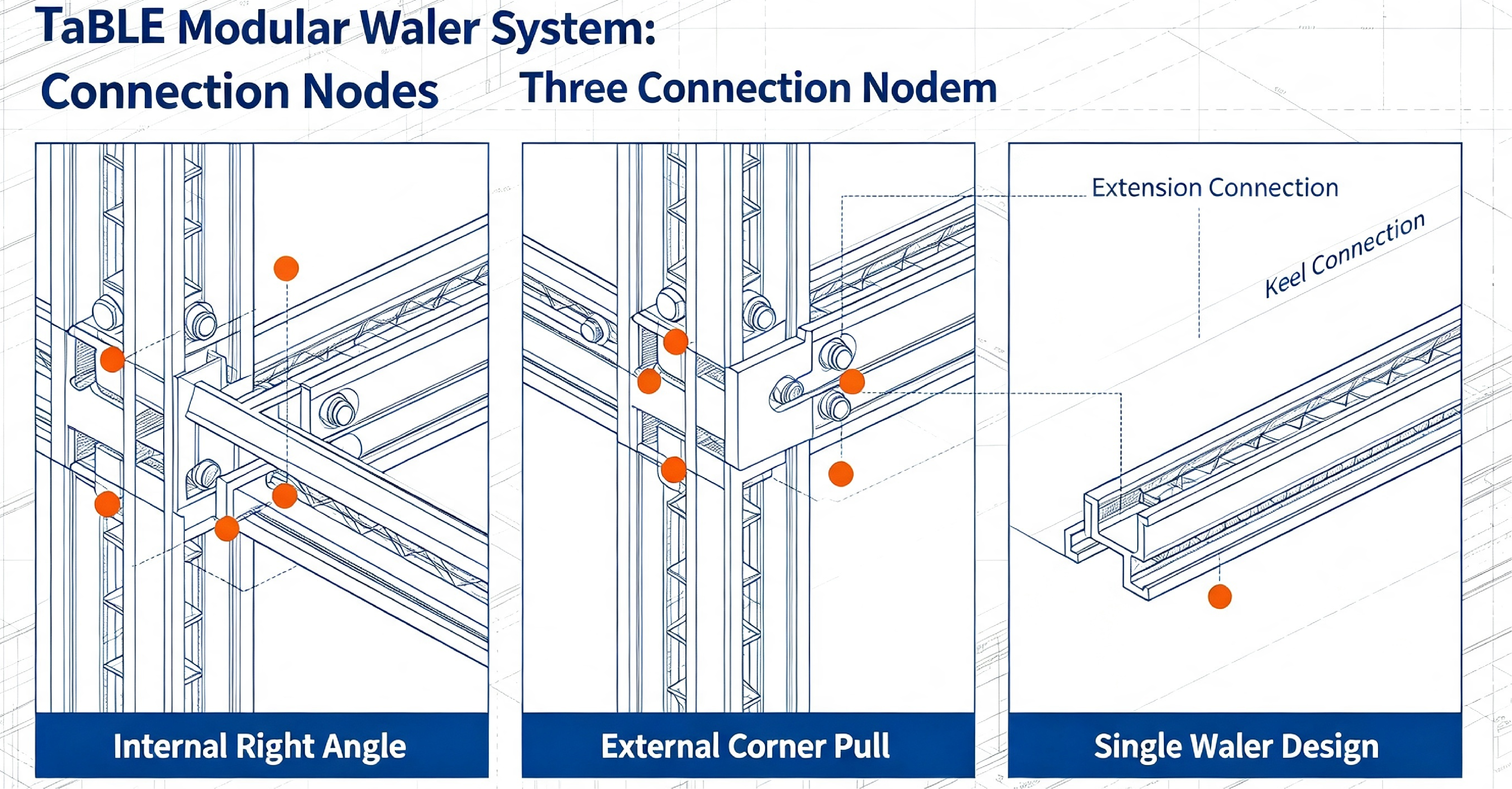

Breakthrough 1: Only Three Components for Connecting Simplify your formwork setup with just three essential connection components. No more juggling dozens of different parts — everything you need is right there.
Breakthrough 2: Single Waler Design The revolutionary single waler design means the screw does not need to pass through the backing. This dramatically speeds up installation time and reduces material waste.
Breakthrough 3: Fixed-Length Detachable Tapered Wall Screw Say goodbye to plastic casings and cement supports. Our fixed-length detachable tapered wall screw system eliminates these consumables entirely, reducing both cost and environmental impact.
Comprehensive Component Portfolio
The TABLE Modular Waler System includes a full range of accessories to handle every construction scenario:
4X6 System Components
| Component | Weight |
| Diagonal brace connection | 1.0kg |
| Wall bolt plate | 0.2kg |
| Wall bolts (specification: 14) | — |
| Extended pieces | 1.4kg |
| Lengthen extended pieces | 2.1kg |
| Internal corner stiffening | 2.1kg |
| Extended inner corner reinforcement | 2.8kg |
| Angular pull | 1.9kg |
6X8 System Components
| Component | Weight |
| Diagonal brace connection | 1.2kg |
| Wall bolt plate | 0.2kg |
| Wall bolts (specification: 18) | — |
| Extended pieces | 1.8kg |
| Lengthen extended pieces | 2.7kg |
| Internal corner stiffening | 2.7kg |
| Extended inner corner reinforcement | 3.6kg |
| Angular pull | 2.4kg |

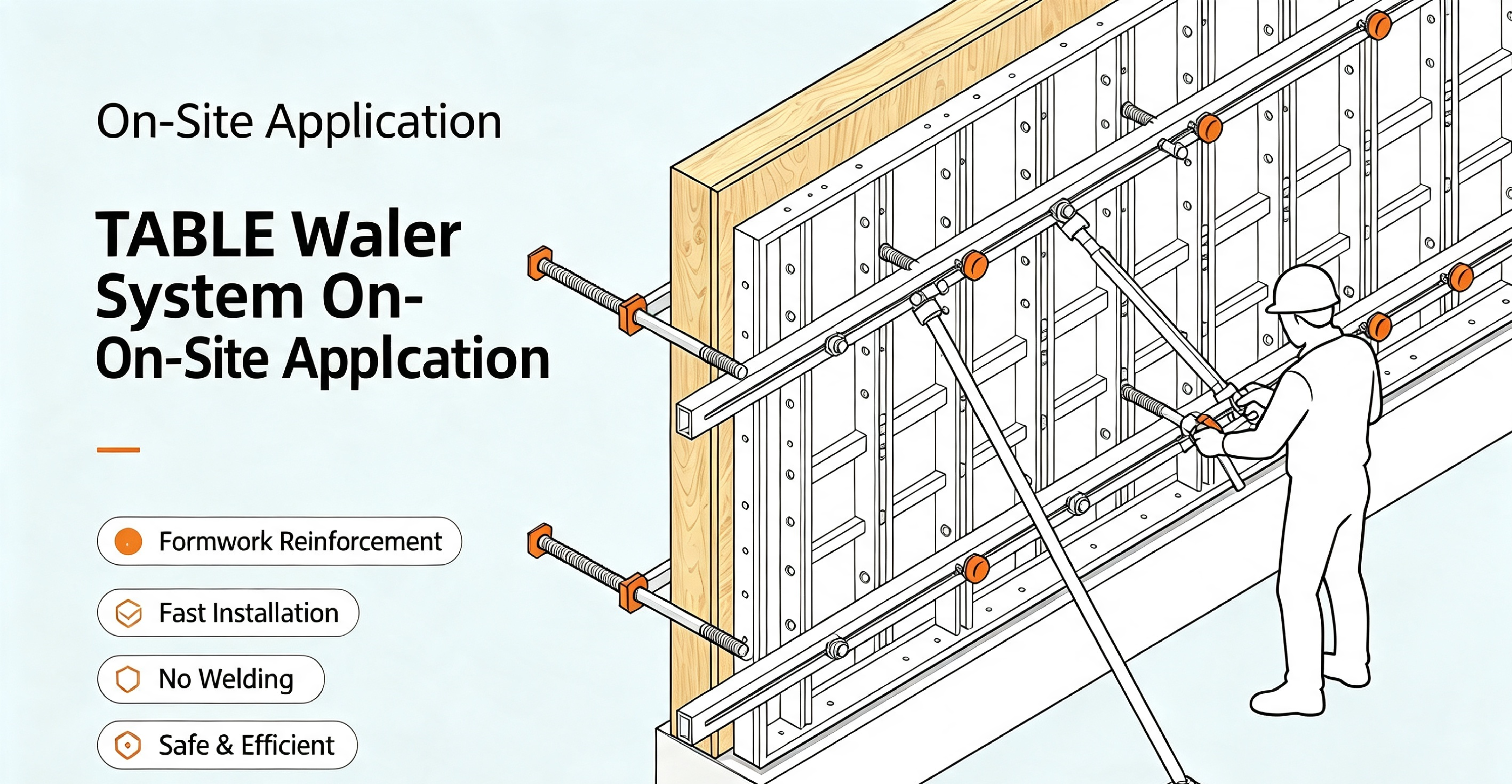

Wide Range of Applications
The TABLE Modular Waler System is incredibly versatile and compatible with various formwork systems:
- Aluminum Formwork — Perfect for high-rise residential and commercial projects
- High Strength Steel Formwork — Ideal for heavy-duty industrial construction
- Tieplate System or Toerod System — Works seamlessly with both popular tie rod configurations
- 65 Series, 63 Series & Other Systems — Compatible with major formwork system standards
Whether you are working on wall formwork, column formwork, or complex corner details, the TABLE Modular Waler System delivers reliable, efficient reinforcement every time.
Traditional Methods, Modern Execution
While the TABLE Modular Waler System is revolutionary in design, it maintains compatibility with proven construction methods:
- Uses standard D18/D15 high strength tie rods
- Horizontal tie rods distance must be less than 1000mm (same as traditional systems)
- For housing projects, typically 4 rows inside & 5 rows outside wall (same configuration as traditional walers)
This means your team can adopt the system without retraining on entirely new construction methods — the familiar approach remains, just executed with far better materials and design.
Why Choose TABLE Modular Waler System?
Strong Applicability
High degree of standardization means strong applicability across diverse project types. The no-welding assembly mode ensures consistency and quality.
Easy Shipping and Storage
Components are classified by length and accessory type, making storage, retrieval, and transportation straightforward and efficient.
High Secondary Usage Rate
The rectification costs for different projects are
minimal — simply re-select different lengths to match your new project requirements.
Cost-Effective
With over 500 turnover uses and low amortization cost, the TABLE Modular Waler System delivers exceptional return on investment over its lifetime.
Conclusion: Build Smarter, Not Harder
The TABLE Modular Waler System represents the future of formwork reinforcement. By combining high-strength materials, innovative design, and practical engineering, this system addresses the core pain points that have plagued the construction industry for decades.
Whether you are a contractor looking to reduce labor costs, a project manager aiming to accelerate construction timelines, or a developer focused on sustainability and waste reduction, the TABLE Modular Waler System delivers tangible benefits across the board.
Ready to revolutionize your formwork process? Contact TABLE Shoring & Formwork today to learn more about how the Modular Waler System can transform your next construction project.
