Adjustable Steel Props (PA‑PD Series): Complete Buying & Application Guide for Construction Shoring

Introduction

Temporary vertical shoring is one of the most critical safety components in modern building construction. Adjustable steel props (also widely named acrow props, post shores, scaffolding steel props) deliver reliable temporary load‑bearing support for concrete slabs, beam formwork, renovation reinforcement and multi‑scenario site operations.

Our PA‑PD serial adjustable steel props cover light‑duty, medium‑duty, heavy‑duty and super‑heavy‑duty working conditions. By combining Q235A cost‑effective steel and high‑strength Q355B steel, plus standardized G‑type hook/pin locking accessories, this product line balances structural safety, installation efficiency and whole‑project economy. This blog will break down product specifications, core advantages, application scenarios and practical selection advice for contractors, formwork engineers, procurement managers and scaffolding rental companies.

What Is an Adjustable Steel Prop?

An adjustable steel prop is a telescopic vertical shoring assembly for temporary construction support. Main components include outer tube, inner tube, threaded adjusting collar, G‑type safety hook / locking pin, square top plate and square base plate.

The inner‑outer tube threaded‑and‑pin composite structure enables coarse height positioning via pin holes and fine height tuning through rotating the threaded collar. Square top & base plates enlarge contact area to avoid local settlement or punching damage on formwork and ground substrates. Hot‑dip galvanized surface treatment improves anti‑corrosion performance for outdoor, humid or coastal construction sites.

PA‑PD Series Steel Prop Full Specification Comparison

We developed four graded models: PA Prop, PB Prop, PC Prop, PD Prop. Each targets distinct load‑level project requirements.

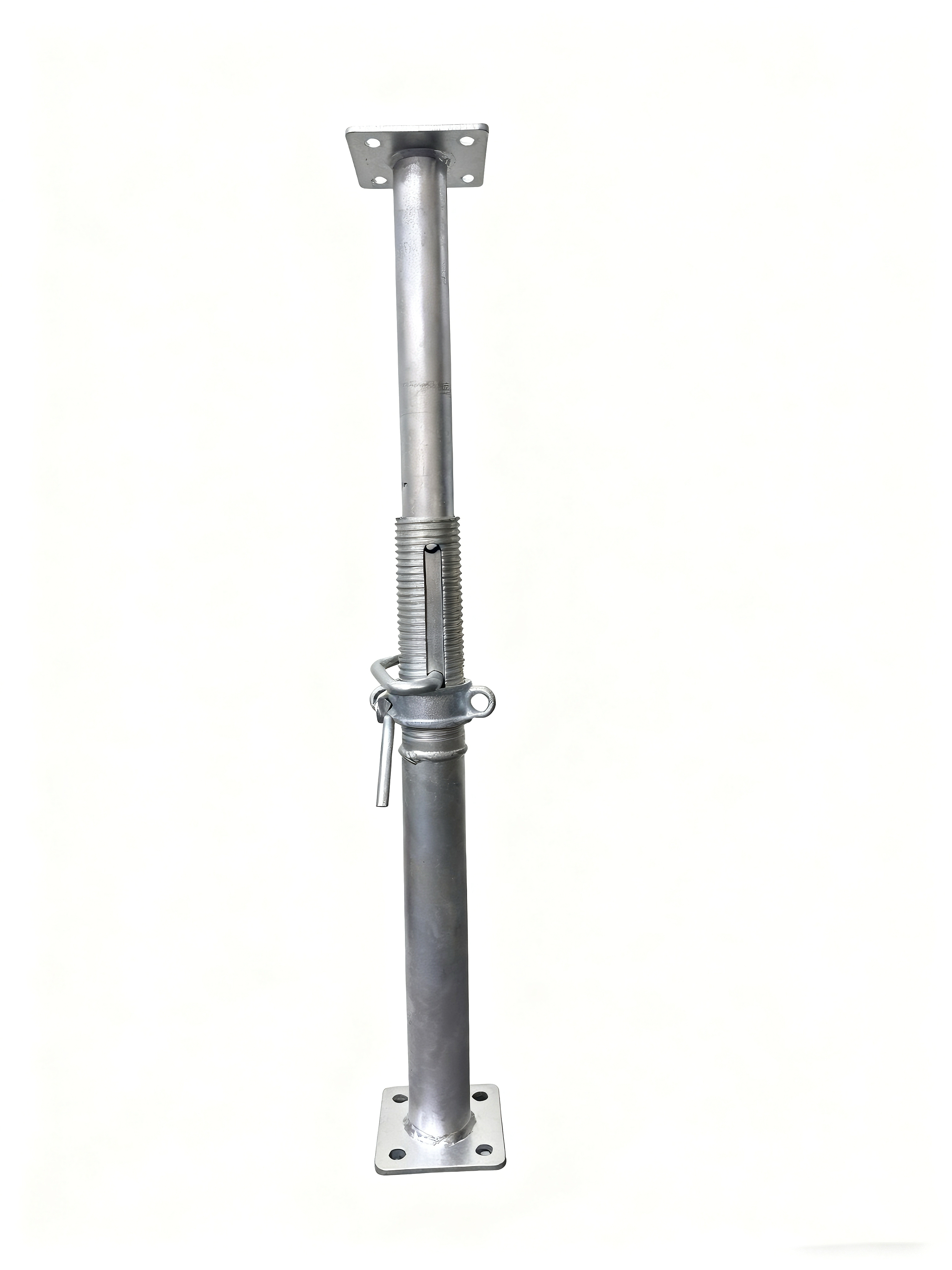

PA Prop (Medium‑Duty Standard Construction Grade)

• Structure: Outer Tube 60×2.5 (Q235A), Inner Tube 48×2.75 (Q355B), Top Plate 120×120×6
• Accessory: G‑Type Pin φ16 (Q235B)
• Core Feature: Optimized load‑bearing capacity, designed for conventional general building construction. Widely used in residential and commercial building slab & beam formwork support.

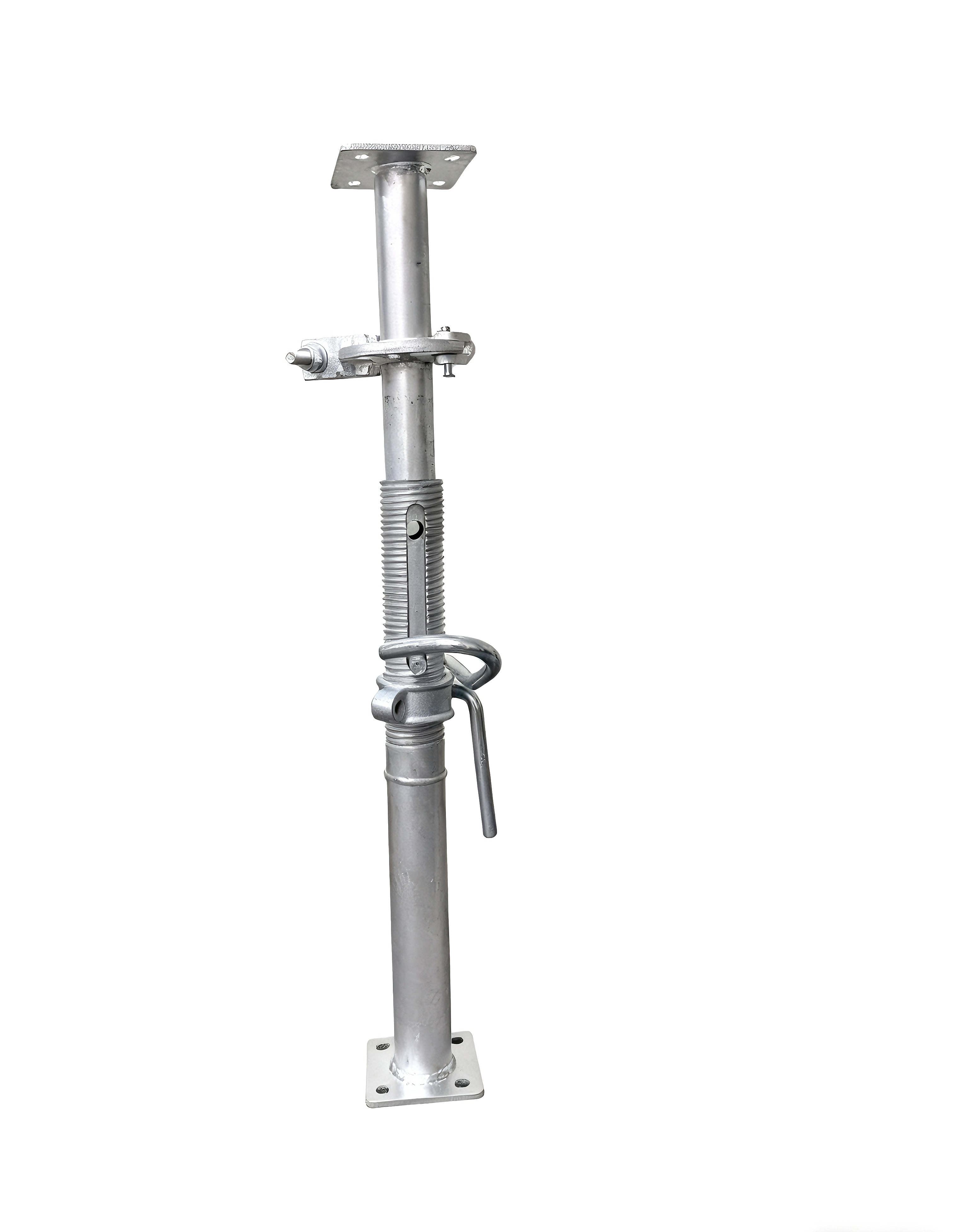

PB Prop (Heavy‑Duty Thickened Grade)

• Structure: Outer Tube 60×3.0 (Q235A), Inner Tube 48×3.25 (Q355B), Top Plate 120×120×8
• Accessory: G‑Type Pin φ16 (Q235B)
• Core Feature: Thickened steel tube and reinforced top plate, specially engineered for heavy‑load working conditions such as thick concrete slab pouring and high‑load formwork projects.

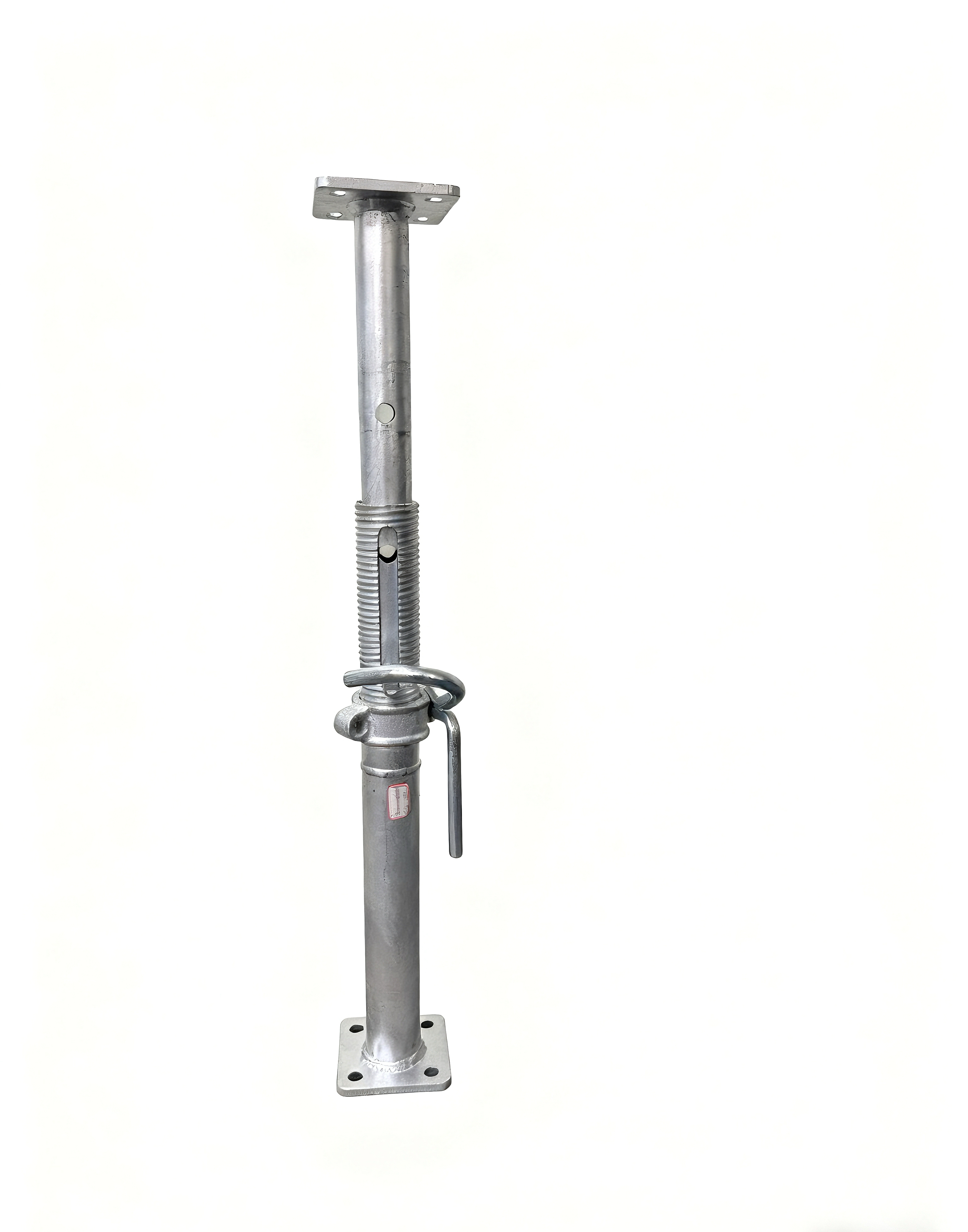

PC Prop (Super‑Heavy‑Duty Large‑Diameter Grade)

• Structure: Outer Tube 76×3.0 (Q235B), Inner Tube 63.5×3.5 (Q355B), Top Plate 120×120×6
• Accessory: G‑Type Pin φ16 (Q355B / 45#)
• Core Feature: Larger tube diameter + dual high‑strength Q355B material combination. The preferred solution for heavy‑duty and special complex construction conditions.

PD Prop (Light‑Medium‑Duty Lightweight Grade)

• Structure: Outer Tube 60×2.3 (Q235A), Inner Tube 48×2.3 (Q355B), Top Plate 120×120×6
• Accessory: G‑Type Hook φ14 (Q355B /45#)
• Core Feature: Light‑weight structural design, suitable for temporary shoring under small‑to‑medium load; cost‑efficient for low‑rise renovation, secondary structure formwork and light‑load temporary bracing.

Core Functional Advantages of PA‑PD Steel Props

1. Flexible Height Adjustability

The threaded & bolt composite structure of inner‑outer tubes supports flexible height adjustment, matching different floor heights and varied formwork support requirements. Coarse positioning uses pin holes, fine adjustment relies on the threaded collar to achieve precise contact pre‑tightening between prop, formwork and base substrate.

2. Fast On‑Site Installation

Adopted quick‑release G‑type hook / pin locking accessories. Operators can finish positioning and locking without complex tools. It significantly cuts construction cycle time and elevates overall site working efficiency.

3. Graded Load Adaptability

From PD light‑duty → PA medium‑duty → PB heavy‑duty → PC super‑heavy‑duty, product load‑bearing capacity is tiered to cover light‑medium‑heavy load‑demand scenarios. Buyers can select targeted models instead of over‑spec purchasing, optimizing total project procurement cost.

4. High Structural Stability

Square‑shaped top plate and base plate expand contact surface to mitigate risks of local settlement and sliding. Mixed‑grade steel material (Q235A + Q355B) ensures anti‑buckling performance and overall structural rigidity under axial compression load.

Technical Highlights

1.Premium Mixed‑Material Selection

Combination of Q235A (good processability & cost‑effectiveness) and Q355B (high tensile strength, strong deformation‑resistant property). This material formula achieves balanced cost‑performance for temporary shoring components.

2.Galvanized Anti‑Corrosion & Long Service Life

Pre‑galvanized surface treatment delivers outstanding rust‑proof capability. Props can withstand outdoor exposure, rainy and humid construction environments, extend reusable service cycles and lower long‑term replacement expenses.

3.Full‑Set Standardized Accessories

Uniform specification for G‑type hooks and G‑type locking pins across the whole series. It simplifies bulk procurement, spare‑parts inventory and daily site maintenance for contractors and rental enterprises.

Typical Application Scenarios for PA‑PD Props

• Slab & beam formwork temporary support during concrete pouring for residential, commercial high‑rise buildings
• Secondary structure construction, low‑rise renovation and structural reinforcement projects
• Heavy‑load formwork for thick concrete decks, underground basement projects
• Special‑condition temporary shoring requiring high anti‑buckling performance

Frequently Asked Questions (QA Section)

Q1: What is the difference between Q235A and Q355B steel in steel props?

A: Q235A offers good weldability and cost‑performance, commonly applied for outer sleeves. Q355B is high‑strength low‑alloy steel with higher yield strength and better anti‑buckling performance, mainly used for inner load‑bearing tubes and safety locking pins. Mix‑material design balances manufacturing cost and mechanical safety.

Q2: How should I choose among PD, PA, PB and PC series?

A:

• PD Prop: Small‑medium temporary load, renovation & light secondary‑structure work, lightweight priority.
• PA Prop: Standard conventional building construction, most common medium‑load formwork projects.
• PB Prop: Thick concrete slab, high‑load formwork, heavy‑duty vertical shoring.
• PC Prop: Super‑heavy‑load or special‑complex site conditions requiring maximum anti‑buckling performance.

Always cross‑verify working load limit (WLL) at actual extended height; longer extension will reduce effective load‑bearing capacity of any steel prop due to column buckling principle.

Q3: Are galvanized steel props suitable for outdoor and wet‑environment construction?

A: Yes. Pre‑galvanized surface greatly improves anti‑corrosion performance for outdoor, rainy, or coastal construction sites. Avoid props with damaged galvanized layers; heavily rusted or bent props must be retired directly, as deformation sharply reduces safety load capacity.

Q4: What are G‑type hook and G‑type pin? Are they interchangeable?

A: They are core safety locking accessories for our props. G‑type hook (φ14) is used for PD light‑duty series; G‑type pin (φ16) matches PA / PB models, and upgraded φ16 Q355B/45# pins are fitted on PC heavy‑duty props. They are dimension‑specific; cross‑model interchange is not allowed for safety reasons.

Q5: Can steel props be used horizontally or as inclined raking props?

A: PA‑PD series are primarily engineered for vertical axial temporary support. Standard square flat plates are not designed for horizontal or large‑angle raking load. If inclined bracing is required on‑site, you must adopt dedicated raking props or add customized end fittings and follow professional structural calculation and local construction safety standards.

Q6: What inspections should be performed before re‑using second‑hand steel props?

A: Check tube body for bending, dent or cracking; inspect threaded collar for jamming or thread damage; verify G‑hook / locking pin for deformation or crack; check galvanized surface for heavy corrosion. Any defective unit should be eliminated and cannot be reused.

Q7: Do you accept custom specifications for adjustable steel props?

A: Yes. We support customization for tube dimension, plate size, surface treatment and special‑length requirements according to project drawing parameters. Contact our technical team for custom quotation.

Conclusion

Adjustable steel props remain irreplaceable temporary shoring equipment for modern construction. Our PD‑PA‑PB‑PC graded series gives engineers and procurement parties clear product segmentation from lightweight to super‑heavy‑duty. High‑strength Q355B inner tube material, standardized safety locking accessories and galvanized anti‑rust treatment guarantee site safety, installation efficiency and long‑term reusability.

When selecting props for your project, confirm actual working height, calculated vertical load and site environmental conditions, then pick the matching model. For heavy‑load or special‑working‑condition projects, PC large‑diameter series is strongly recommended.

If you need technical datasheets, load‑rating tables or project‑oriented quotation, feel free to reach out to our professional sales‑engineering team.
