Introduction to TABLE Deck Regular System

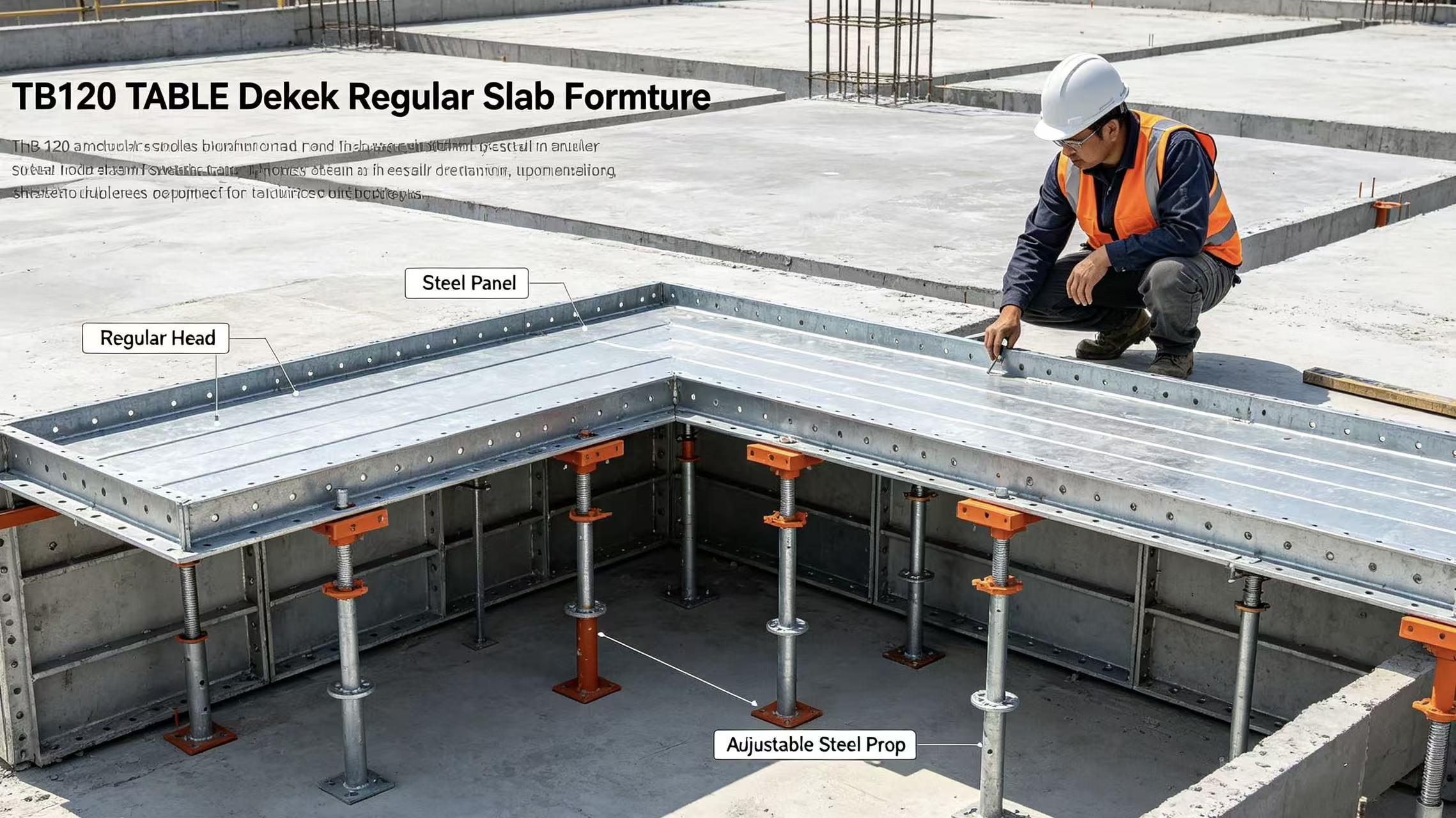

TABLE Deck Regular System is also known as TB120 modular high-strength steel slab formwork. Unlike early stripping table formwork, this regular model abandons complicated early stripping fittings, and only relies on three core parts to complete construction support, including steel panel, regular prop head and adjustable steel prop.
The whole set adopts Q700 Zn-Mg-Al high-strength steel as raw m
aterial, realizing ultra-lightweight structural design. The heaviest single panel only weighs 32kg, and the weight borne by workers in single operation is controlled within 20kg. The lightweight feature greatly eases the physical burden of site workers, enabling one worker to finish 100 square meters of erection or 200 square meters of dismantling work every day, effectively improving overall construction progress.

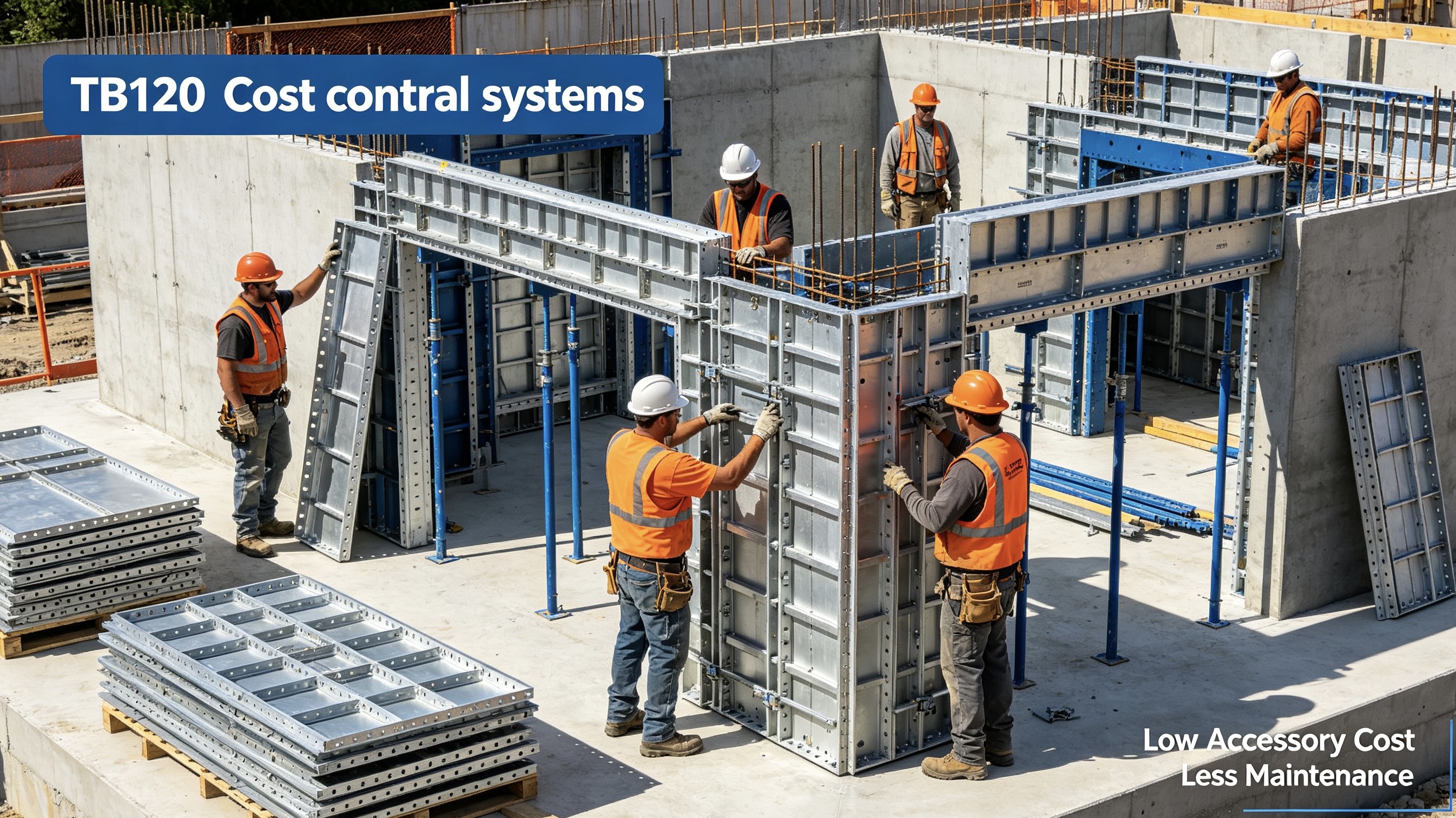

aterial, realizing ultra-lightweight structural design. The heaviest single panel only weighs 32kg, and the weight borne by workers in single operation is controlled within 20kg. The lightweight feature greatly eases the physical burden of site workers, enabling one worker to finish 100 square meters of erection or 200 square meters of dismantling work every day, effectively improving overall construction progress.Outstanding Cost Control Performance of TB120 Regular Formwork
The matched standard regular head has no movable vulnerable parts, strong anti-deformation ability, fewer failures on construction sites, and cuts the long-term maintenance and replacement cost of accessories for contractors.
The system can be directly matched with second-hand aluminum formwork widely used in the construction market, which greatly reduces the one-time equipment procurement pressure of engineering enterprises. This cost advantage is particularly prominent for one-time renovation projects and small-scale low-rise construction projects popular in Central Asia, Russia and Kyrgyzstan.
Free Layout Fits All Irregular Floor Structures
There is no fixed module limit for the TB120 regular slab formwork system, and designers can carry out flexible layout according to the actual shape of the floor. It is perfectly suitable for custom villas, special-shaped commercial buildings, thick post-tensioned slabs and scattered reconstruction projects.
Supporting filler angle accessories can perfectly fill the gaps between panels, eliminate extra narrow strips in construction, reduce slab joints, concrete slurry leakage and surface unevenness. It cuts the later grinding and repair work of concrete surfaces, and delivers smoother pouring forming effect.
Simple Operation Reduces Labor Training Cost
The whole erection flow of TB120 regular formwork only contains six easy steps, and the disassembly work can be completed through one-time integral stripping. The operation logic is straightforward, new site workers can master the whole process without long-term professional training, which effectively avoids construction quality risks caused by irregular operation.
The steel panel frame adopts rounded edge integrated molding technology, which avoids collision damage during handling and makes the transfer and stacking of formwork safer and faster on site.
Wide Compatibility With Various Supporting Systems
This set of slab formwork has extremely high universality, and can cooperate with mainstream vertical support equipment on the market. It can be seamlessly matched with ring lock scaffolding, kwikstage scaffolding, crab shoring frames and our self-produced EN1065 standard adjustable steel props.
The regular flange prop head can be stably installed on all common vertical support tubes, realizing flexible combination of different support schemes according to the load demand of construction projects.
Suitable Construction Scenarios for TABLE Deck Regular System
TB120 regular table formwork is the preferred supporting solution for multiple types of construction projects. It works well in customized villas and low-rise irregular residential buildings, old building renovation and reconstruction projects, thick slab and post-tensioned concrete projects, special-shaped commercial complexes and small temporary structures.
It also adapts to projects with non-standard floor sizes, loose construction schedules and insufficient spare formwork accessories. It is not recommended for high-rise standard apartment projects that require rapid turnover of formwork.
Complete Matching Components & Standard Specifications
Regular Formwork Panels
RP189 panel measures 1.8×0.9m with total weight of 32kg, RP159 panel is 1.5×0.9m weighing 28kg, RP186 panel is 1.8×0.6m weighing 22kg, RP156 panel is 1.5×0.6m weighing 19kg, and RP99 small panel of 0.9×0.9m only weighs 16kg. All panels can be freely combined according to construction area.
Supporting Auxiliary Parts
Regular head with basic structure weighs 2.0kg, while regular head with flange structure weighs 2.8kg. The matched adjustable steel props meet EN1065 classification standard, with multiple models including GB6, GB9, GB15 and GB18 for different height requirements.
The complete accessory kit also includes gate braces for fixing steel props, filler angles for gap filling, and high-quality plywood panels to guarantee smooth concrete surface after pouring.
Core Advantages Attracting Central Asian Contractors
A large number of villa reconstruction, low-rise housing and infrastructure renovation projects exist in Russia, Kazakhstan and Kyrgyzstan, most of which have irregular floor design and limited construction budget. Our TB120 regular slab formwork can precisely fit the local market demand.
The low wear accessories effectively control the overall project investment of local engineering companies; ultra-light steel design adapts to the situation of insufficient on-site labor in Central Asian countries; the compatibility with local mainstream aluminum formwork avoids extra supporting equipment purchase; simple mechanical structure reduces after-sales maintenance troubles for overseas partners.
Summary of TB120 TABLE Deck Regular Formwork
TABLE Deck Regular TB120 slab formwork realizes a perfect balance of low cost, layout flexibility and construction efficiency. If your project involves non-standard irregular floors, old building renovation or thick concrete pouring, this lightweight modular steel formwork is your most cost-effective choice.
We can provide complete installation drawings, detailed operation manuals and customized size services for global construction contractors, covering Russia, Kazakhstan, Kyrgyzstan and all Central Asian infrastructure markets.
