Introduction
With over 20 years of professional experience in formwork and scaffolding manufacturing, TABLE Intelligent Construction Technology is proud to present our newly developed product line — the TB100 Series High-Strength Alloy Steel Wall Form System, which is currently undergoing intensive R&D, structural testing and accessory optimization.
Traditional construction formwork solutions including aluminum alloy formwork, plastic formwork and ordinary steel formwork have long-standing industry limitations: excessive dead weight, weak corrosion resistance, poor cross-system compatibility and short service life. Our R&D team rethought the overall structural design and raw material selection to address all these pain points, delivering a lightweight, durable and universally adaptable formwork system for walls, columns and floor slabs.
1. Revolutionary Material & Production Technology
Q700/Q550 High-Tensile Alloy Steel Frame
The entire panel frame is fabricated from 700-grade high-strength alloy steel, a breakthrough material within the formwork industry. Compared with aluminum and plastic panels bearing equal concrete lateral pressure, TB100 panels achieve remarkable weight reduction while maintaining superior rigidity and anti-deformation performance.
Full Electrophoresis Anti-Rust Treatment
Every frame undergoes full immersion electrophoresis coating, forming a dense protective layer to resist rust, abrasion and chemical erosion on construction sites, significantly extending reusable cycles and lowering long-term project costs.

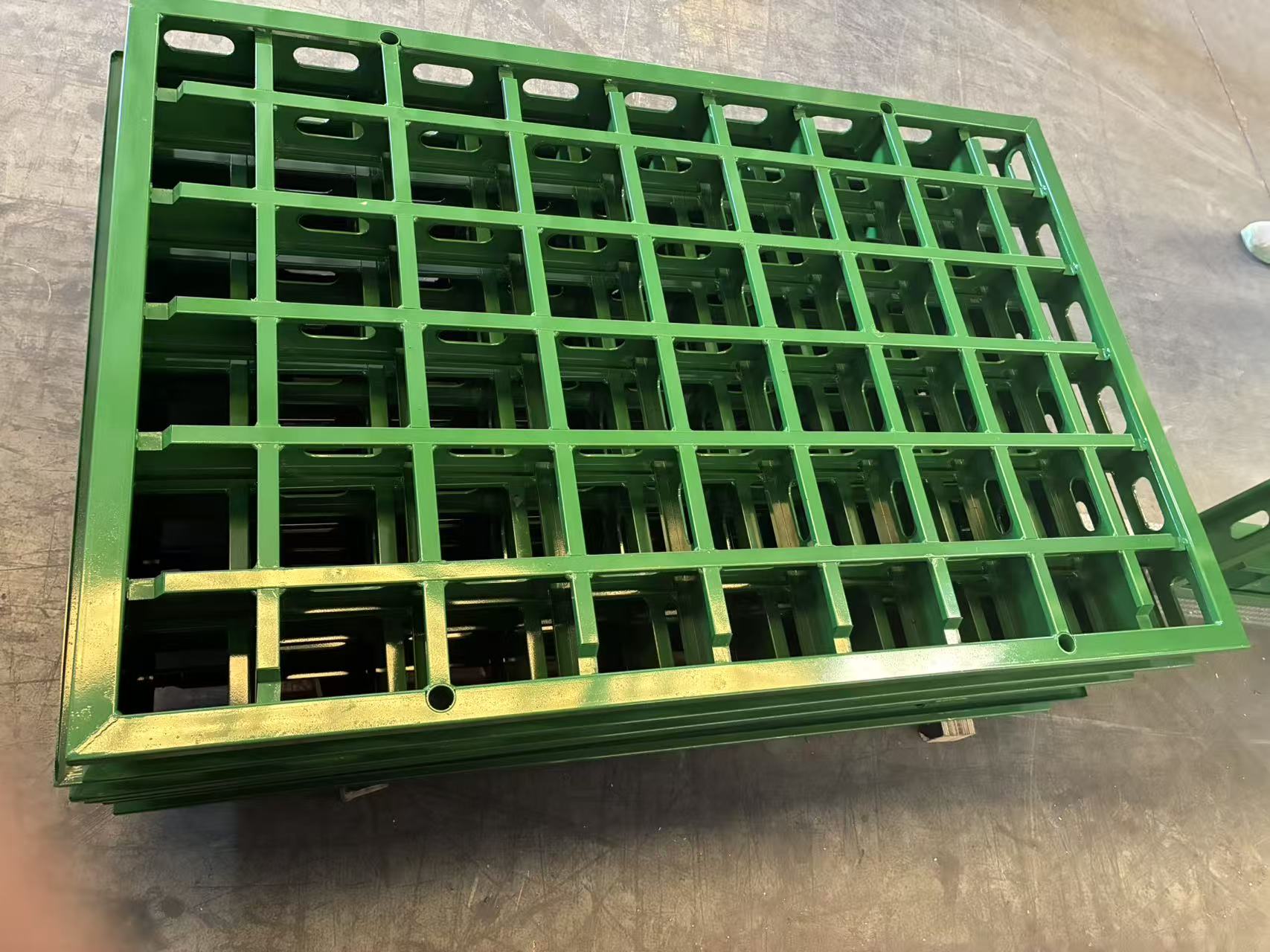

Integrated Welded Frame Design
Precision full-welded steel grids are equipped with pre-reserved built-in tie holes and waler slots. No secondary cutting or drilling is required during on-site assembly, drastically speeding up installation efficiency. Each panel is embedded with 10mm plywood or composite face board for smooth concrete finishing.
2. Core Innovation: Cross-System Conversion & Universal Compatibility
The biggest competitive advantage of the TB100 series lies in its interchangeable conversion mechanism, a one-of-a-kind innovation in the global formwork market:
1. Dedicated conversion transition panels support straight and 90° angular conversion between 100-series steel formwork and mainstream 65-series aluminum/steel formwork, enabling mixed assembly of two different systems on a single jobsite.
2. Full compatibility with widely used plastic formwork brands (e.g., UO formwork) available in the market. Contractors’ existing formwork panels and hardware accessories can still be reused without full replacement, greatly cutting procurement expenses.
3. Multi-scenario applicability: one set of panels meets forming demands for vertical walls, structural columns and cast-in-place floor slabs.
3. Complete Standardized Component Ecosystem
Our engineering team has finalized a full set of standardized components with verified size, area and weight parameters during the R&D phase, covering all construction forming requirements:
3.1 Standard Wall Panels
A full size spectrum from small filler inserts (WP150×100, only 0.9kg) to large main panels (WP1350×900, 34kg), covering all modular layout combinations.
3.2 Conversion Accessories
- Trans-Panels: Linear transition pieces for 100-to-65 system connection
- IC & OC Corner Formwork: Internal and external angle moulds for column and wall joints
- Trans-IC: Special angular conversion parts for 90° system switching
3.3 Upgraded Durable Steel Fittings
All matching hardware has been upgraded with thicker, wear-resistant steel: connecting handles, formwork bolts, straight waler bolts and tie rods. These updated parts feature longer service life and higher load-bearing capacity than conventional accessories.
4. Wide Application Scenarios Upon Official Launch
Once all laboratory and on-site simulation tests are completed, the TB100 series will serve all mainstream concrete construction projects worldwide:
- High-rise residential buildings and commercial complexes
- Industrial plants, warehouses and municipal public infrastructure
- Integrated matching with TABLE’s supporting product lines: climbing formwork, heavy slab shoring systems and construction safety protection systems
5. About TABLE Intelligent Construction Technology
TABLE Intelligent Construction Technology (Suzhou) Co., Ltd. is a professional high-tech enterprise integrating independent R&D, precision manufacturing and global sales of formwork and scaffolding equipment. For over two decades, we have delivered customized one-stop forming solutions to contractors, developers and formwork distributors across the globe.
Contact Information
- Address: Unit 507, C-7 Our Building, No.328 Xinghu Street, Suzhou Industrial Park, China (Jiangsu) Pilot Free Trade Zone
- Tel / Fax: +86 512 65199851 - Business Emails: tableshoring@gmail.com / tableformwork@gmail.com
- Official Websites: www.tableformwork.com
Closing Outlook
Our R&D team is carrying out repeated load tests, assembly simulation and weight optimization to polish every detail of the TB100 series. We warmly welcome global partners, contractors and distributors to enquire about prototype data, technical drawings and pre-launch cooperation opportunities.
Stay tuned for the official launch of TABLE TB100 Series — a revolutionary universal steel formwork system reshaping the construction industry!
