In modern cast‑in‑place concrete construction, formwork reinforcement largely decides project safety, construction speed and overall cost. Conventional double steel‑pipe or channel‑steel back‑waler solutions face persistent pain points: heavy components, frequent on‑site cutting and welding, complicated sorting for return warehouse, and low re‑usability across different projects. Today we dive deep into the TABLE Modular Waler System, a patented new‑generation weld‑free formwork reinforcement innovation for global building contractors.
What Is the TABLE Modular Waler System

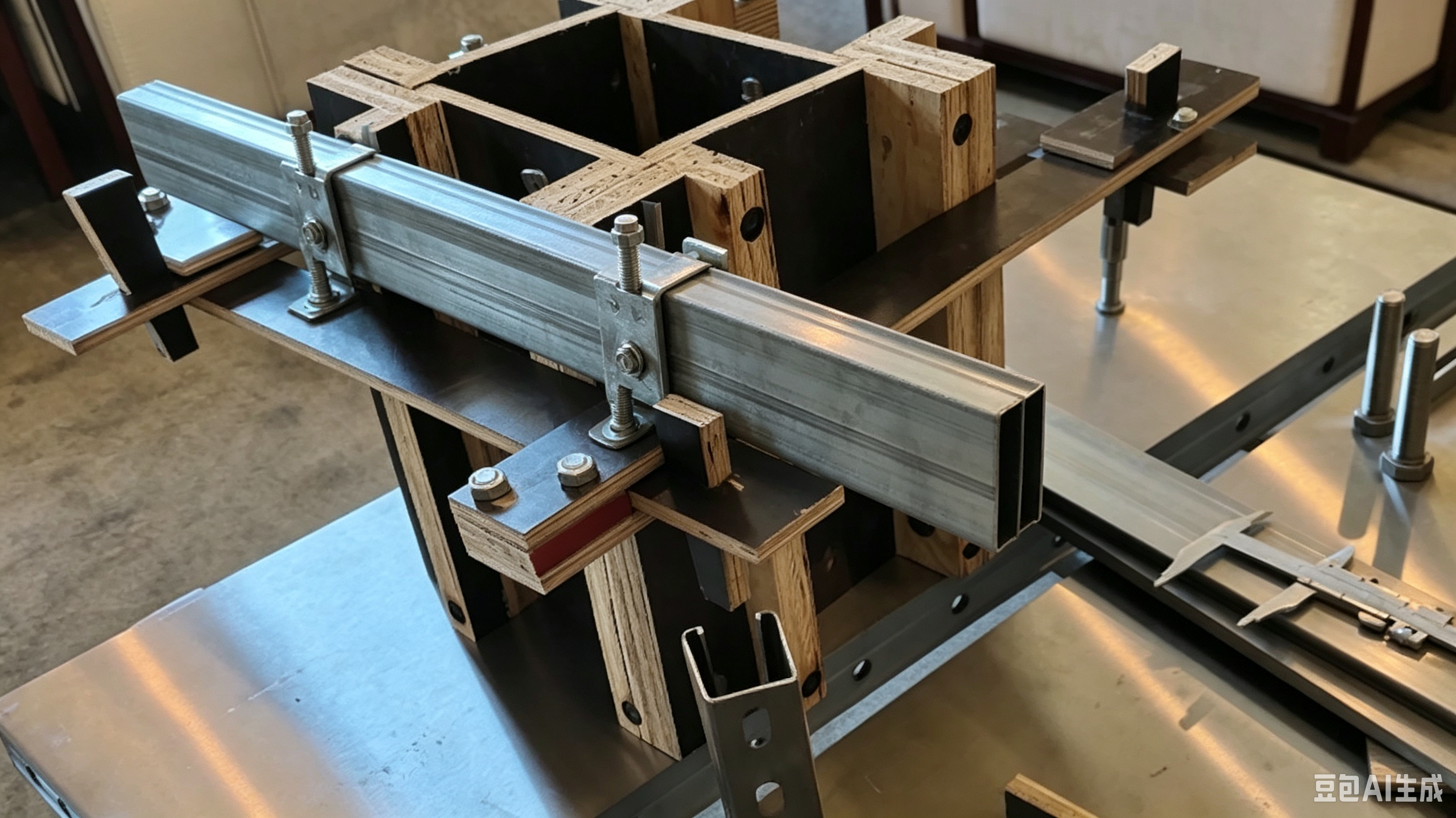

The TABLE Modular Waler System is a patent‑protected combined light‑steel keel reinforcement system. It rolls Q355 galvanized sheet into inner C‑shaped light steel keels. All keels follow digitized length design, with standard lengths as multiples of 300 mm, such as 600 mm,1500 mm,2700 mm. Custom lengths up to 6000 mm are also available. The TABLE Modular Waler System minimizes accessory types; inner right‑angle reinforcements, external‑corner pull reinforcements, extension connectors, diagonal‑brace connectors and wall‑bolt fastening pads are all standardized spare parts. Thanks to digital management, the TABLE Modular Waler System requires no special component numbering, simplifies warehouse sorting and needs no field cutting or modification for reuse on next construction jobsites.
Two core product series belong to the TABLE Modular Waler System: the 4×6 reinforcement system and the 6×8 reinforcement system. The 4×6 light‑steel keel weighs 3 kg per meter and matches wood formwork and plastic shear‑wall formwork. The 6×8 light‑steel keel reaches 5.3 kg per meter, designed for aluminum alloy formwork and industrial wood‑molding molds. The TABLE Modular Waler System supports both tie‑plate system and tie‑rod system, compatible with 63‑series,65‑series and other mainstream formwork products on the market.
Three Major Technical Breakthroughs of TABLE Modular Waler System
- Only three core connecting components: Simplified connection structure reduces spare‑part categories and lowers the learning curve for site workers.
- Single waler design: The bolt does not pass through the back‑keel, realizing single‑waler replacement for traditional double‑pipe walers, cutting material weight and handling workload.
- Fixed‑length detachable tapered wall screw: It cancels plastic casings and cement supports, further cutting consumable costs for each pour cycle.

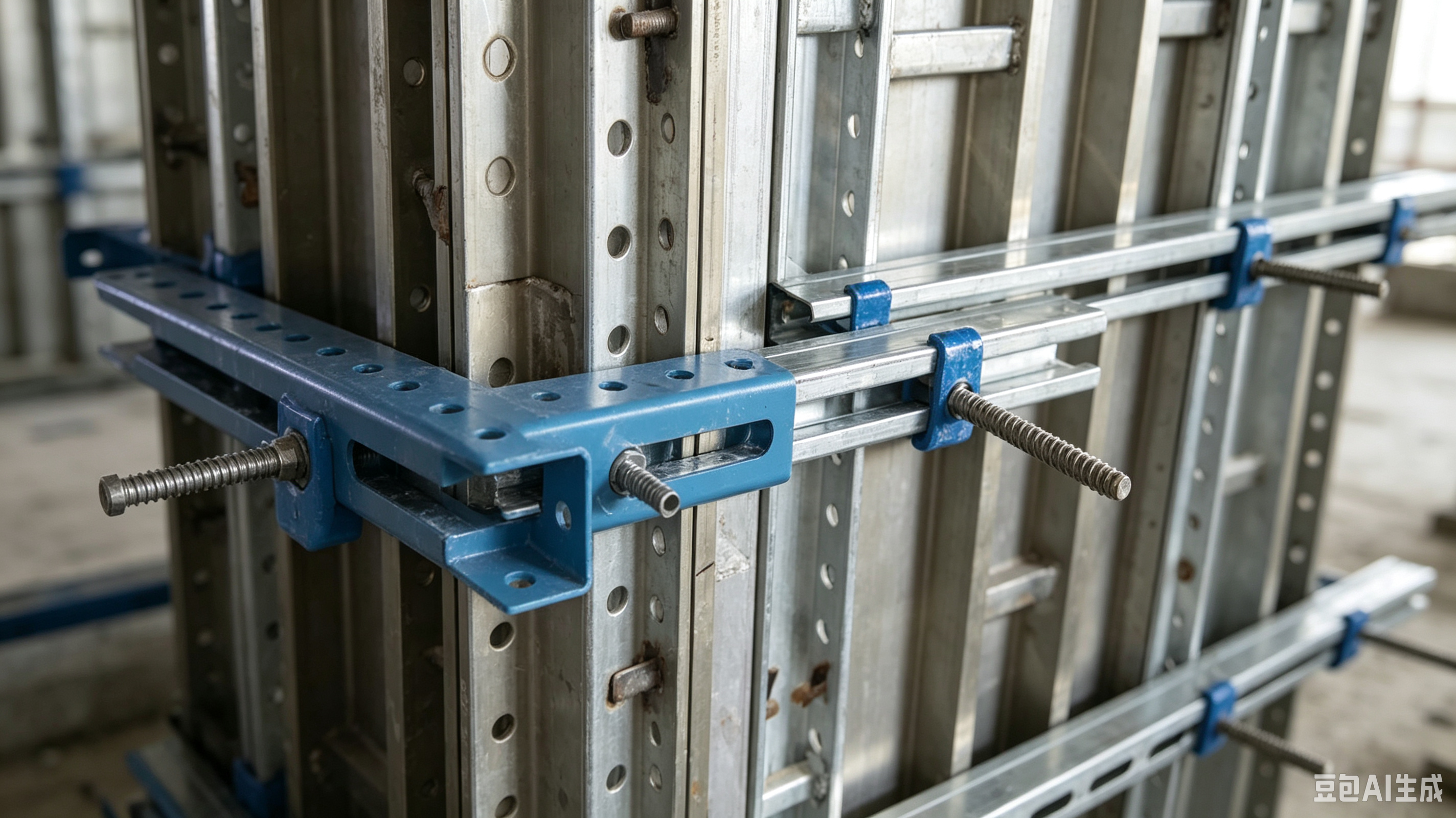

Without any welding work on‑site, the TABLE Modular Waler System completes all assembly via bolt‑and‑connector combination. Compared with old‑style walers, obvious differences lie in lightweight performance, one‑piece assembled structure, non‑weld repeated utilization, and easy classification, storage and transportation. While bringing these upgrades, the TABLE Modular Waler System keeps mature construction logic inherited from traditional waler systems: it still adopts D15/D18 high‑strength tie rods; horizontal tie‑rod spacing must stay below 1000 mm; for residential projects, contractors normally arrange 4 rows of walers inside walls and 5 rows outside walls.
Core Advantages of TABLE Modular Waler System
- Strong compatibility: Works seamlessly with aluminum formwork, high‑strength steel formwork, timber and plastic formwork for shear‑wall and frame‑column concrete pouring.
- Light‑weight & easy operation: Single‑waler design reduces manual handling burden, improves erection speed and lowers site safety risks.
- High standardization: Standard‑size keels and universal accessories avoid random on‑site cutting.
- Super‑high turnover: Components can achieve more than 500 turnover times. Amortized cost drops greatly; modification cost between different projects is low by merely re‑selecting keels of different lengths.
- Convenient logistics & storage: Components are grouped according to length and accessory type, making stock‑taking, searching, loading and warehouse return highly efficient.
- Anti‑rust long‑life treatment: Q700 high‑strength alloy‑steel raw material plus anti‑corrosion surface treatment extends service life in harsh construction‑site environments.
Real‑world Application of TABLE Modular Waler System

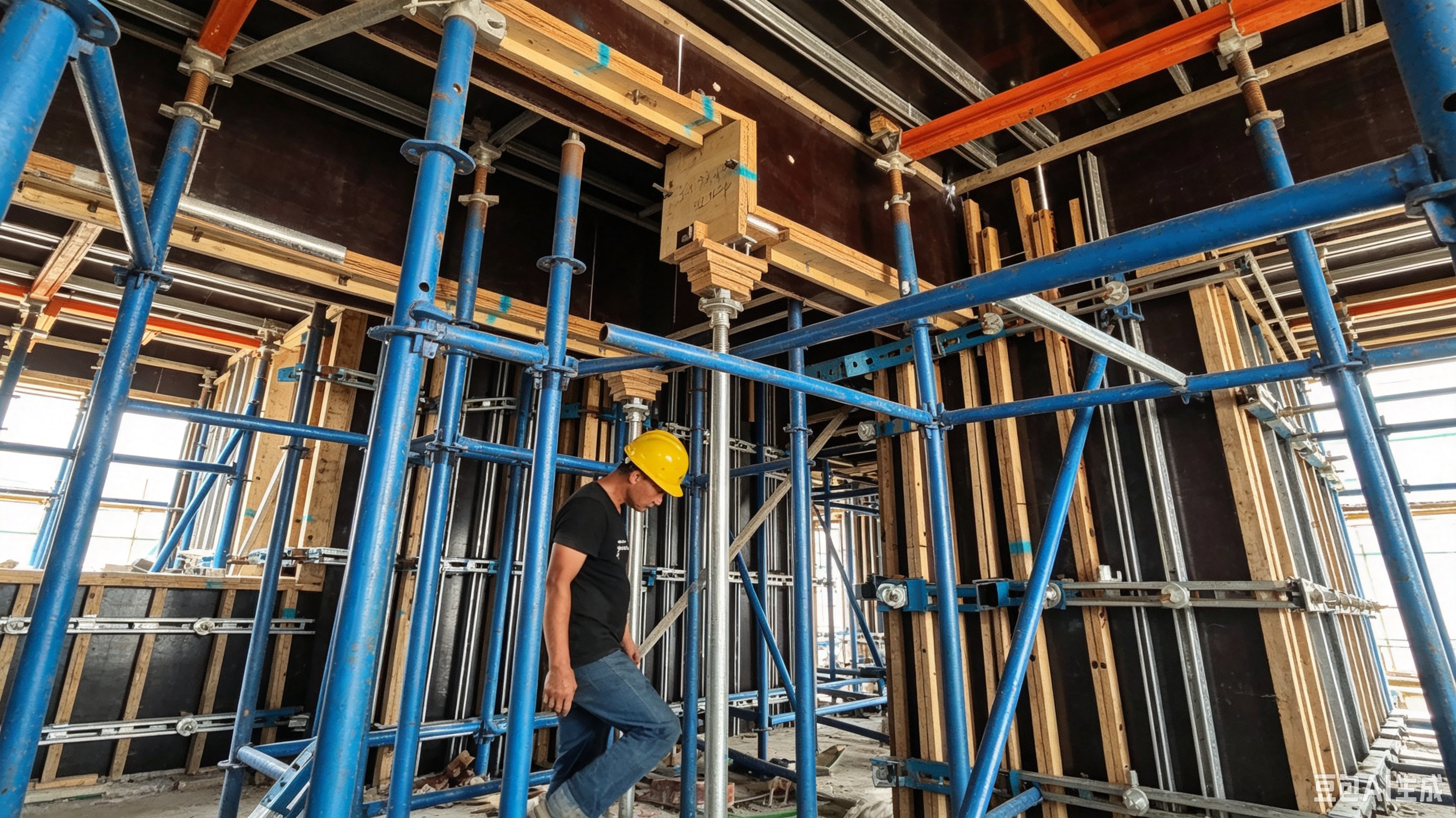

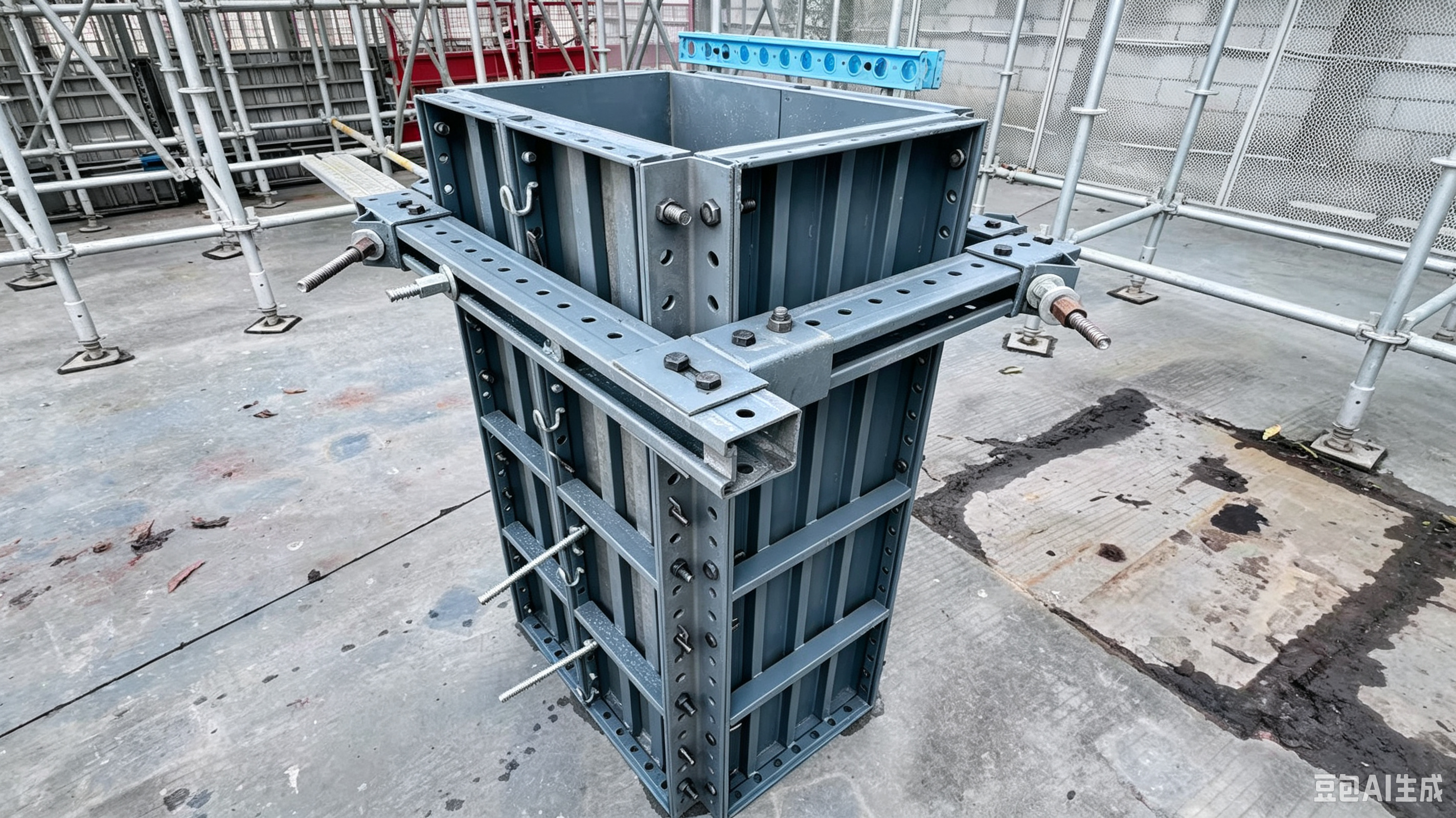

Multiple domestic and overseas housing and infrastructure projects have adopted the TABLE Modular Waler System for shear‑wall and column formwork reinforcement. For column formwork reinforcement scenarios, inner‑corner right‑angle guarantor reinforcement, external‑corner tension reinforcement, Φ18 angle‑pull bolts and double light‑steel‑keel horizontal back‑walers cooperate with LVL square‑wood vertical back‑ribs and 15 mm plywood to guarantee column perpendicularity and concrete molding quality. For shear‑wall formwork, the TABLE Modular Waler System effectively restrains formwork deformation under concrete lateral pressure. Many project cases verify that the TABLE Modular Waler System delivers stable structural performance while shortening formwork erection cycle and cutting overall formwork investment for developers and rental companies.
Conclusion
Against the background of global construction industry pursuing “steel‑for‑wood” and low‑carbon building, the TABLE Modular Waler System solves many long‑standing pain points of traditional formwork reinforcement. Its non‑weld modular concept, high turnover performance and wide compatibility make it a competitive new‑generation reinforcement solution for modern concrete projects. Whether you are a general contractor, formwork rental firm or formwork technical engineer, you may consider evaluating how the TABLE Modular Waler System optimizes your wall and column formwork solutions.
