Introduction to TABLE Modular Waler System

TABLE Modular Waler System is an independently innovated formwork reinforcement system with multiple Chinese utility model patents. It abandons bulky traditional double steel pipe back ribs and adopts standardized C-shaped Q355 & Q700 galvanized light steel keels as the core structure. All keels follow unified 300mm increment length rules, covering standard sizes from 600mm to 3900mm, while custom lengths up to 6000mm are available for special-shaped building layouts.
The system features ultra-few universal accessories, including internal right-angle connectors, external corner tension parts, extension splices, diagonal braces and wall bolt gaskets. Every component is digitally marked by length, eliminating on-site cutting, modification and complicated sorting work. After disassembly, the whole set can be directly reused on the next construction site, greatly boosting turnover efficiency for cross-regional rental fleets operating within the EAEU.

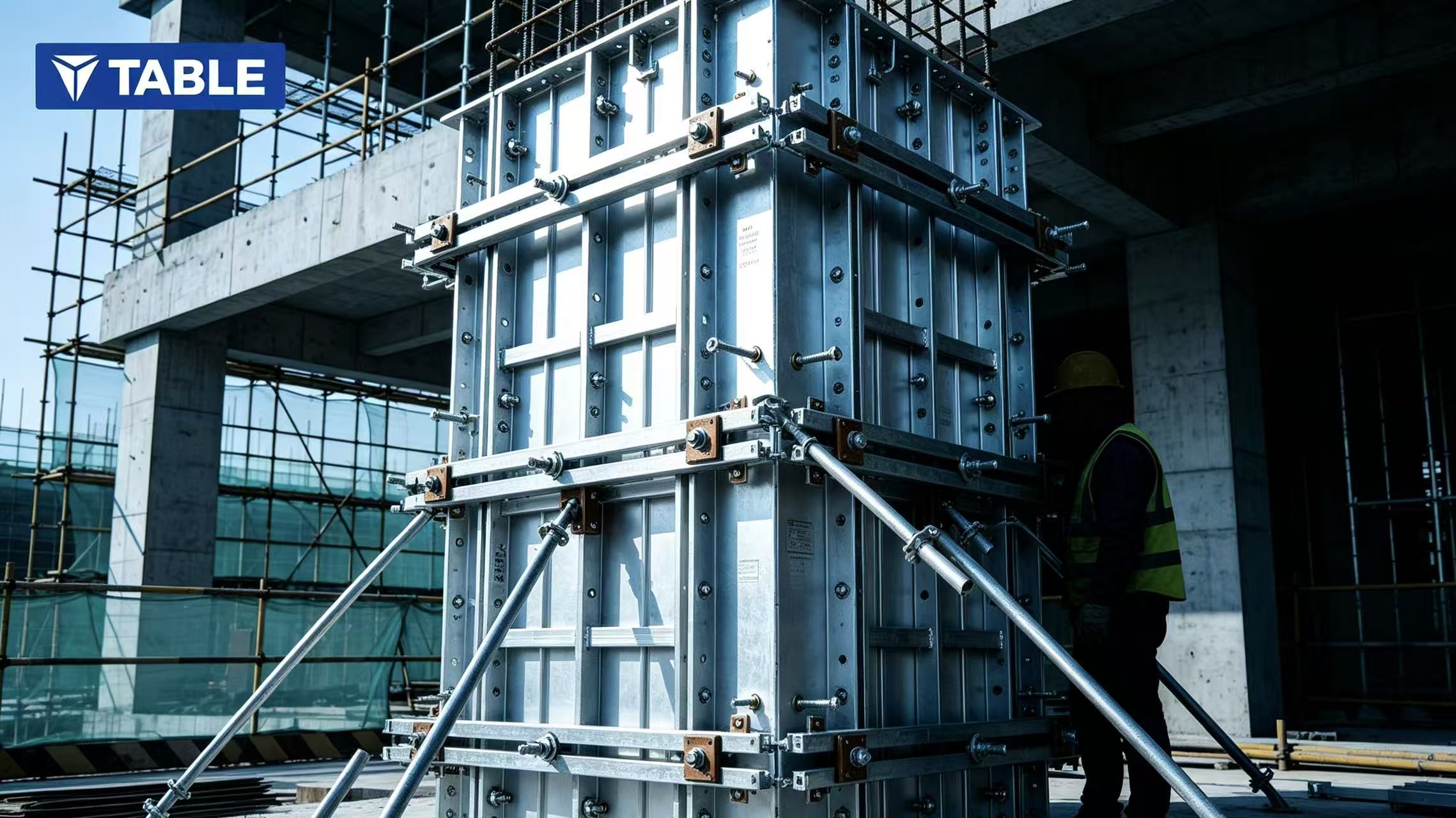

TABLE waler system on construction site.jpg

Core Material & Three Major Technical Breakthroughs for Harsh CIS Climates

All steel components receive full hot-dip galvanized anti-rust treatment with low-temperature resistant alloy formulas, perfectly solving rust, deformation and brittle cracking issues caused by -30°C freezing winters in Russia and drastic day-night temperature swings in Central Asian deserts and mountain zones. The anti-corrosion coating allows long open-air stacking without frequent maintenance, cutting daily warehouse management labor.
Three exclusive structural upgrades differentiate our walers from ordinary steel reinforcement systems. The single-waler design avoids through holes for tie rods and effectively stops concrete slurry leakage during pouring. The full snap-fit assembly requires no welding, only three categories of connectors for full layout combination, reducing site tool and labor input. The fixed-length detachable tapered wall bolts remove disposable plastic sleeves and cement supports, lowering auxiliary material waste and post-stripping cleaning time.
Two complete specification series are designed to match mainstream formwork types in CIS markets. The 4×6 light keel (3kg/m) targets plywood and plastic shear wall formwork, widely used in Uzbekistan and Turkmenistan villa renovation projects. The heavy-duty 6×8 keel (5.3kg/m) carries higher load capacity for aluminum alloy wall and column formwork, ideal for high-rise residential and large energy infrastructure in Moscow, Almaty and other major cities. All accessories of the two series are fully interchangeable for unified warehouse classification and transportation sorting.

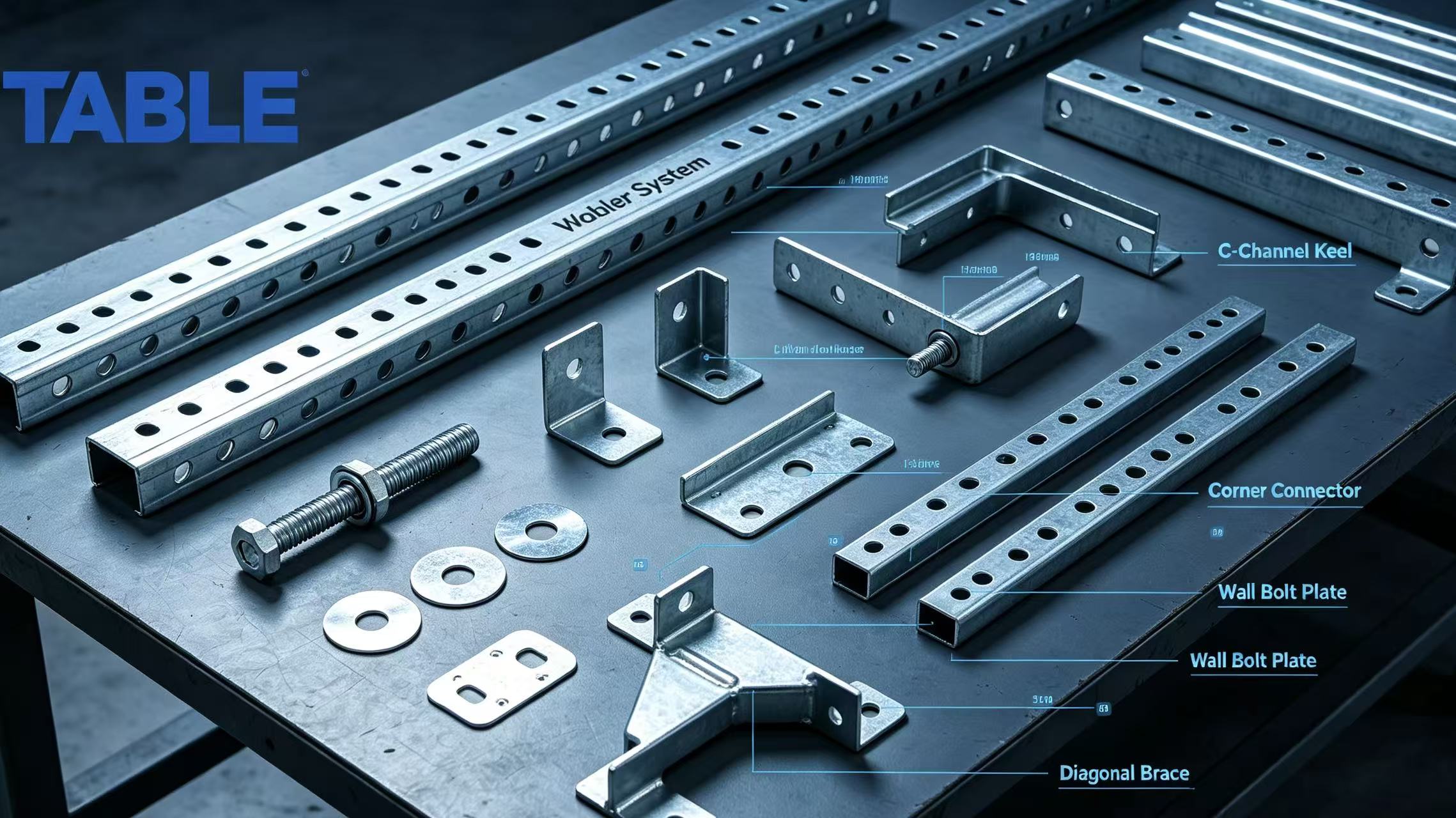

Q700 galvanized steel waler profile close‑up.jpg

Core Market Advantages for Russia & Central Asia

The lightweight modular design brings prominent cross-border logistics benefits for EAEU traders. Single component weight is far lower than traditional double steel pipes, compressing total shipment volume and overland truck freight between China and Central Asian countries. Digitally numbered parts save massive sorting labor when returning equipment to rental warehouses.
The system supports over 500 repeated turnovers, effectively hedging unstable aluminum and timber raw material prices across the region. Without customized processing fees for irregular walls and columns, it fits government tourism construction and special public infrastructure projects popular in Turkmenistan. The simple assembly process lowers skill thresholds; new workers can master full installation within half a day, easing the widespread shortage of professional formwork technicians and cutting overtime labor costs in Russia and Kazakhstan.

Real Construction Applications Across CIS Countries

TABLE Modular Waler System has been widely deployed on residential complexes in Almaty, villa renovation sites in Tashkent, high-rise aluminum formwork projects in western Russia and mountain highway auxiliary facilities in Tajikistan.
The standardized assembly delivers smooth, flat concrete wall surfaces and reduces plastering procedures to save extra labor. Matching internal & external corner fittings guarantee tight splicing without slurry leakage for square columns, inner and outer wall corners. Remote mountain and desert project feedback confirms the Q700 anti-corrosion steel maintains stable performance after years of repeated use under alternating hot and cold weather.

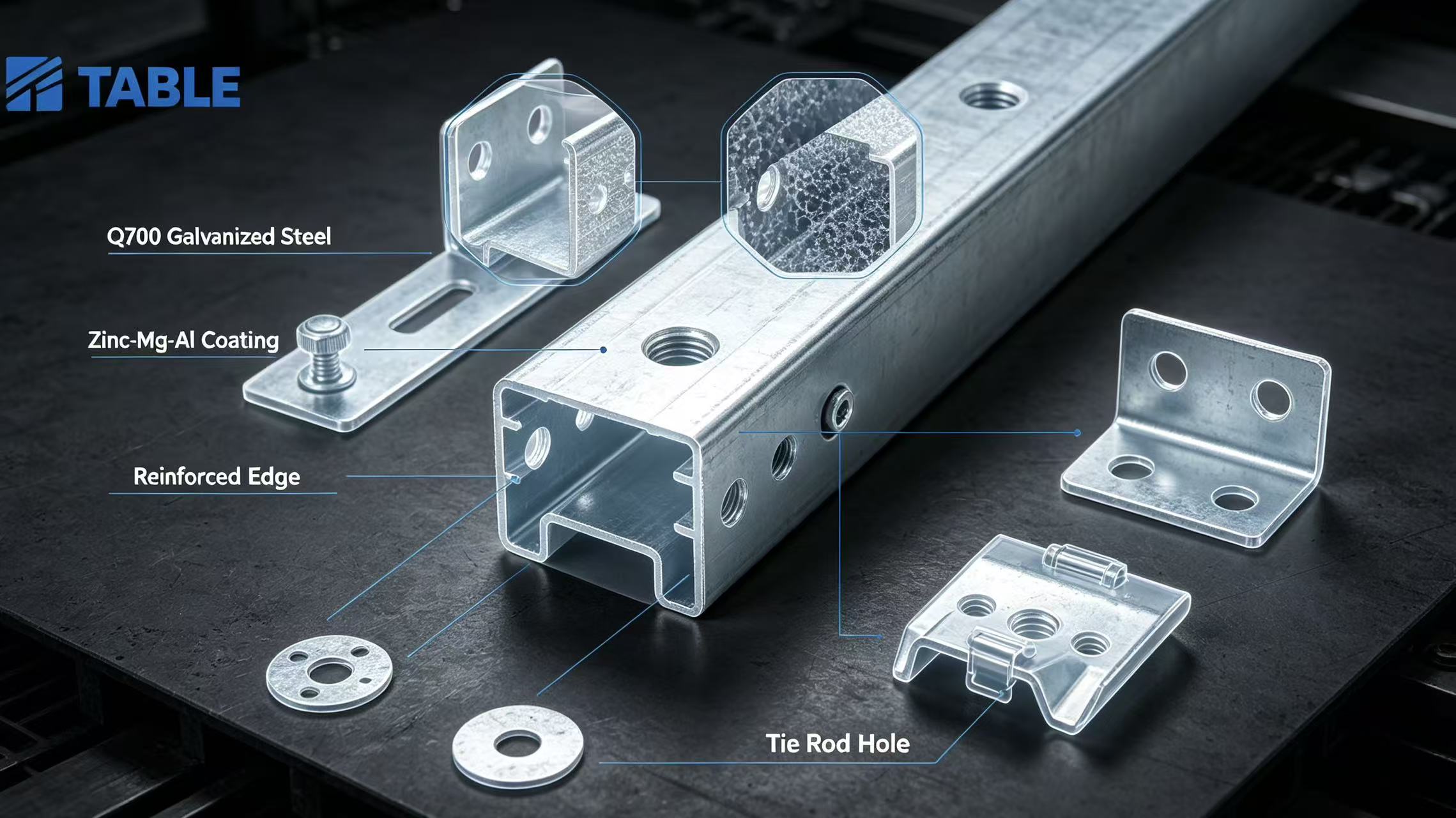

TABLE Modular Waler System Q700 light‑steel reinforcement.jpg

Full Technical & Customs Support for CIS Buyers

TABLE provides complete GOST and EAEU certification documents for all modular waler products to simplify customs clearance procedures for importers. Our multilingual technical team offers Russian-language layout drawing design, material quantity calculation and remote on-site installation guidance to break language and technical communication barriers.
As a full-line formwork manufacturer, we realize one-stop matching with our aluminum wall formwork, steel slab deck and shoring systems to avoid specification conflicts from mixed suppliers. Factory direct bulk pricing and dedicated China-Central Asia overland logistics coordination guarantee stable delivery cycles. Long-term spare parts supply channels are reserved for all cooperative leasing firms and general contractors to solve accessory shortage problems at remote yards.

Closing Remarks

For formwork rental enterprises and construction companies operating in Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan and Turkmenistan, TABLE Modular Waler System addresses core regional pain points including harsh climate corrosion, expensive cross-border logistics, skilled labor shortage and low formwork turnover efficiency. The patented lightweight modular structure balances low upfront procurement cost and ultra-long service life, becoming the optimal replacement for traditional steel pipe back corrugation in all CIS construction markets.
