Introduction to TB63 Series Steel‑Ply System
TB63 Series Steel‑Ply System is a practical modular tool‑type steel‑frame formwork, developed for cast‑in‑place concrete walls and columns. Different from heavy all‑steel formwork and high‑cost full‑aluminum systems, it combines steel‑frame rigidity with cost‑effective film‑faced plywood panels
All panels can be manually carried (max 38 kg per unit). Workers only need a hammer with wedge‑pin connections for assembly. This system is widely used for multi‑story residential buildings, commercial projects and public infrastructure. When matched with TABLE deck early‑stripping slab formwork, it delivers a complete wall‑column‑slab forming solution for CIS construction sites
Material & Modular Specifications for CIS Harsh Conditions

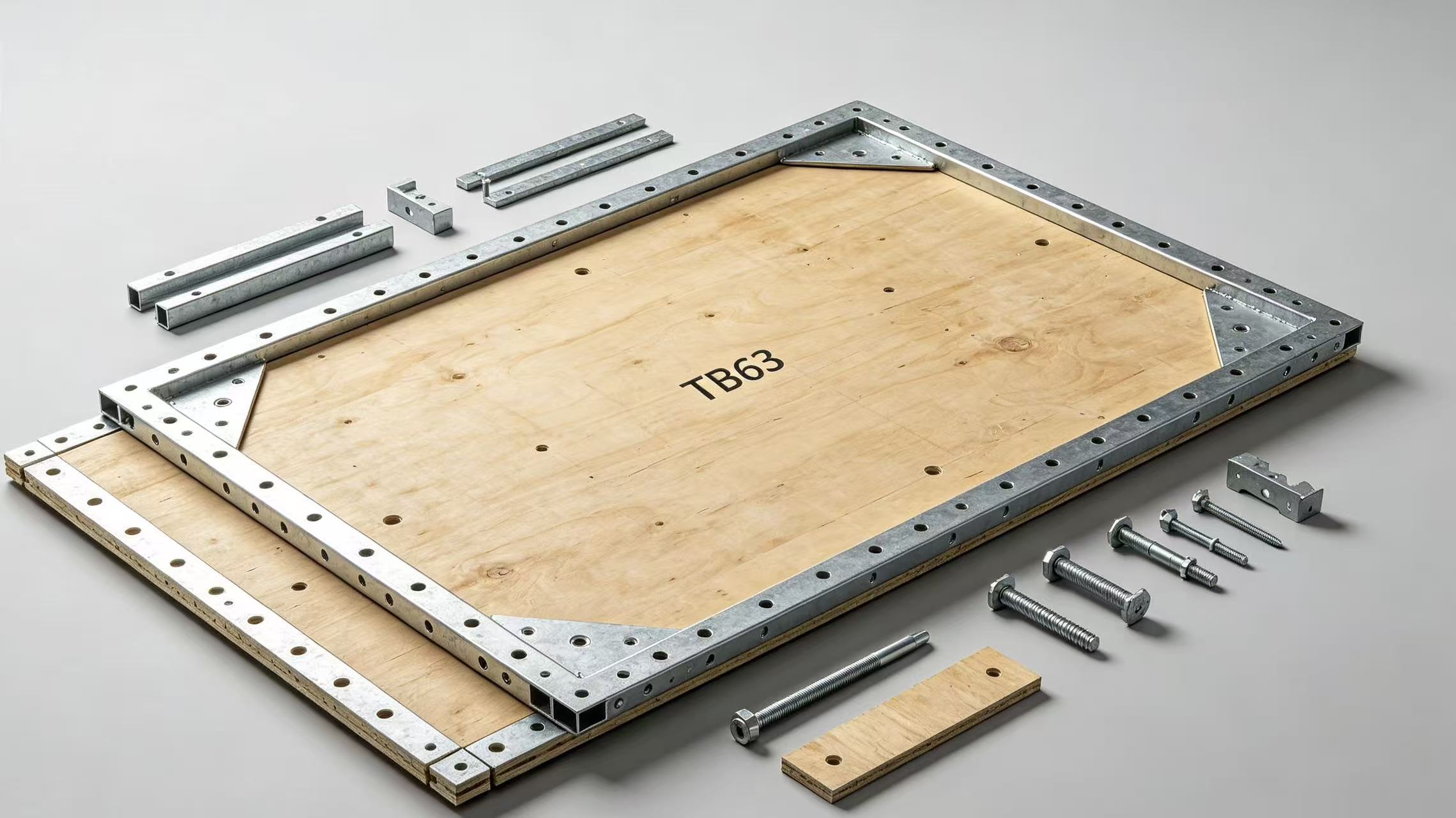

TB63 adopts Q345B / #45 hot‑rolled profiles with anti‑corrosion surface treatment, paired with high‑reuse bamboo‑wood or PVC foam plywood. Modular dimensions follow 50 mm width increments (100‑600 mm) and 300 mm height increments (300‑3000 mm). Rich standard‑size panels plus inner‑corner, outer‑corner and adjustable column units reduce on‑site cutting work
Many sites in Russia and Central‑Asia face large day‑night temperature swings, cold winters and open‑air material storage. The anti‑rust treated steel frame resists deformation and corrosion during long‑term outdoor stacking, which is critical for local form‑rental fleets. Compared with disposable timber formwork, TB63 achieves high turnover cycles and helps rental companies offset volatile lumber prices in EAEU markets.
Core On‑Site Advantages for Russian & Central‑Asian Contractors
- Low‑skill manual installation Panels are light‑weight for two‑person handling. Installation relies on wedge pins, formwork hooks and U‑clamps, requiring merely a hammer. No highly‑skilled carpenters are mandatory, easing the skilled‑labor shortage common across Russia and Central Asia. On‑site gang‑assembly on the ground plus tower‑crane lifting speeds‑up wall erection.

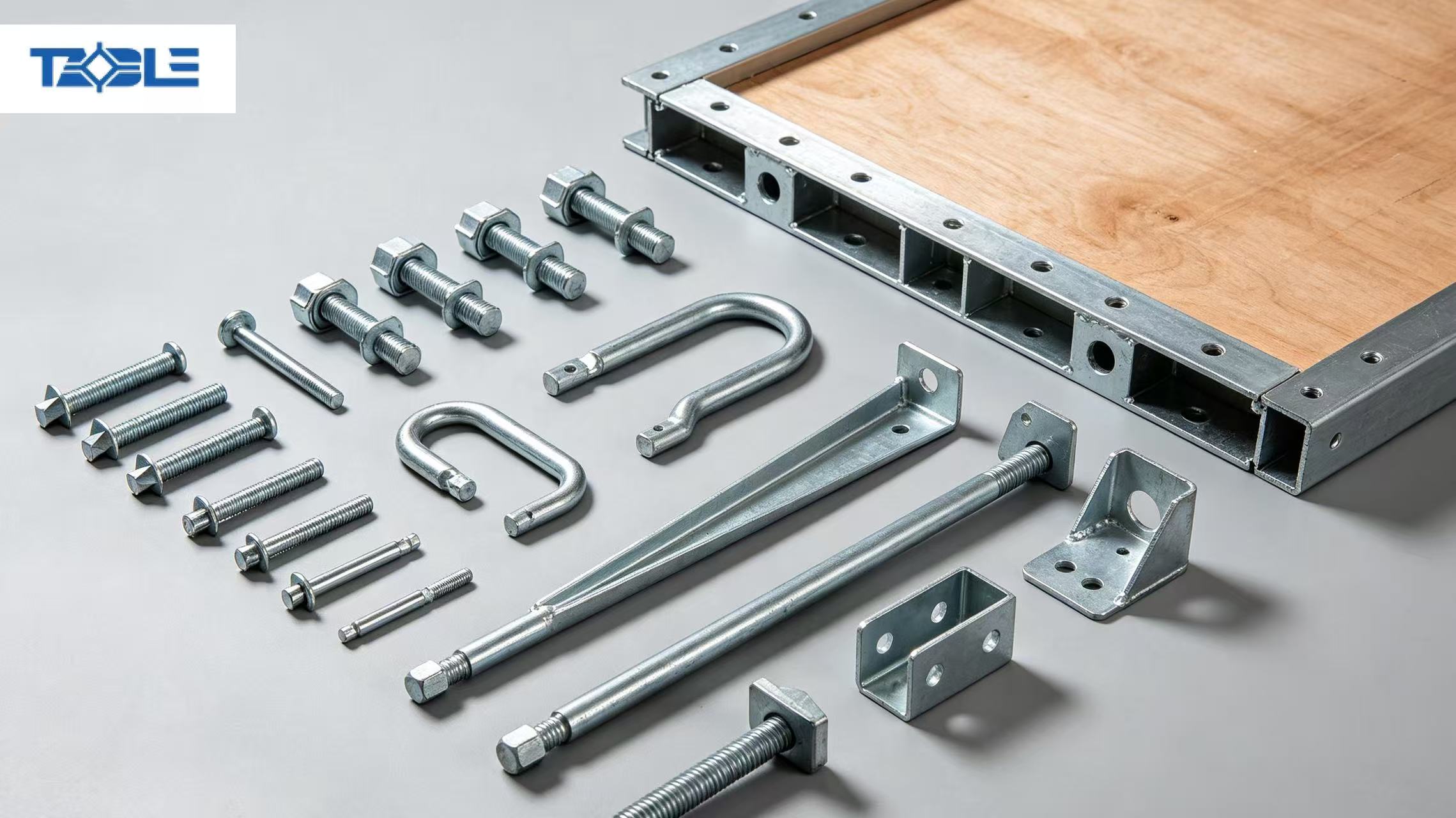

- Excellent system compatibility TB63 works seamlessly with TABLE early‑stripping slab formwork, adjustable steel props, ring‑lock scaffolding and standard 48 mm steel pipes. Existing rental‑yard assets can be reused without large‑scale replacement. Complete accessory portfolio includes diagonal braces, adjustable frames, wedge pins, form‑hooks and corner pieces for walls, square and adjustable columns
- Flexible for varied project types The modular panel system adapts residential apartments, villas, renovation jobs, commercial buildings and public infrastructure. It supports both regular and irregular wall‑column layouts. After pouring, it produces fair‑faced concrete surfaces, which can partially reduce plastering workload.
Typical Application Scenarios in CIS Markets
TB63 Steel‑Ply System is well‑suited for the mainstream project portfolio of Russia, Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan and Turkmenistan. ‑ Multi‑story residential buildings and affordable‑housing programs in Russian cities; ‑ Villa construction and old‑building renovation projects across Uzbekistan and southern Kazakhstan; ‑ Public facilities and small‑to‑medium commercial complexes throughout Central‑Asia; ‑ Square‑column and shear‑wall structures for scattered infrastructure projects.

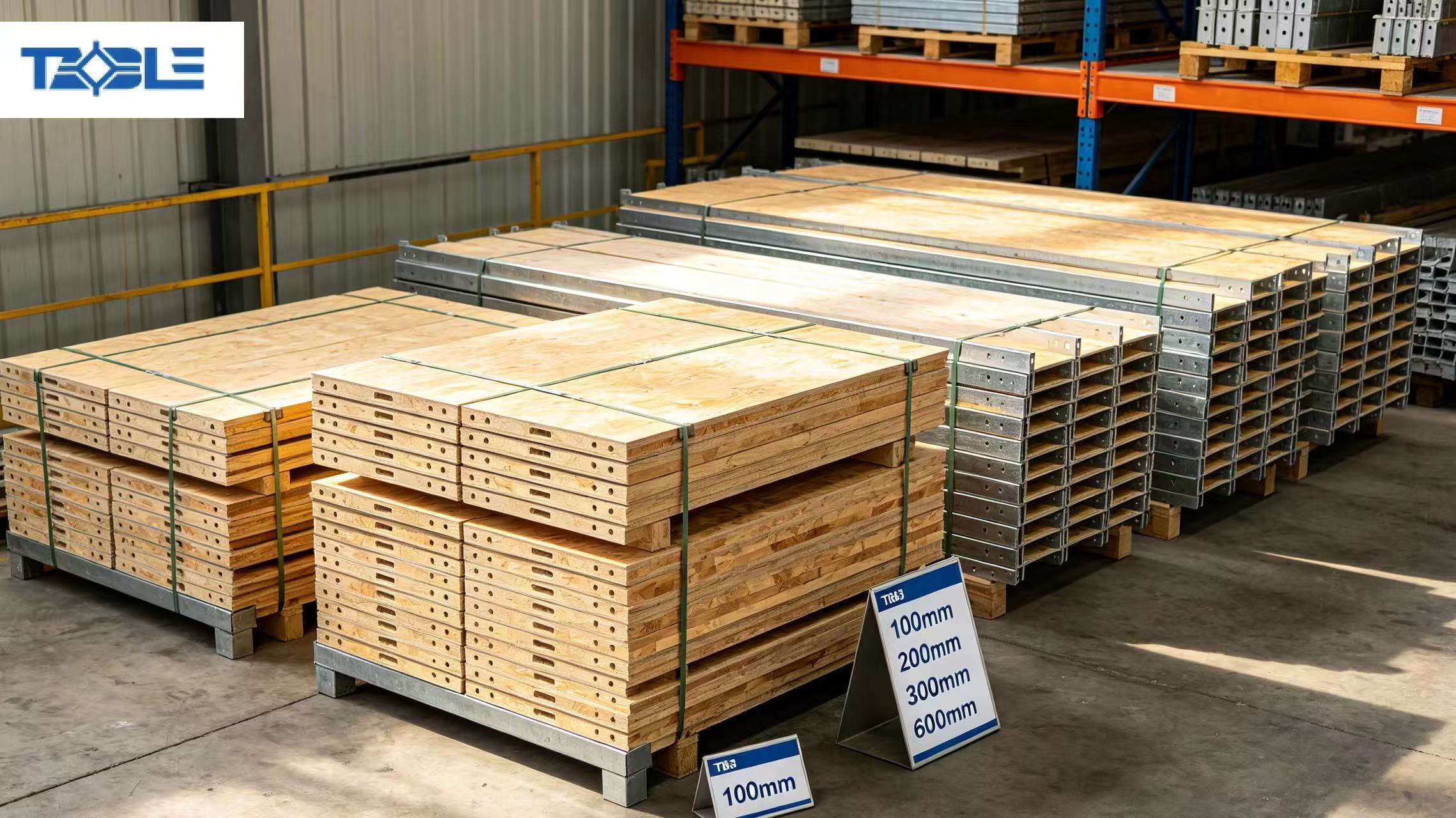

For form‑rental enterprises, standardized dimensions and unified accessories simplify warehouse sorting, cross‑region fleet circulation and over‑land transportation between EAEU countries. Panels can be stacked outdoors between rental cycles without complicated daily maintenance.
Technical Support & Documentation for CIS Importers
TABLE provides GOST‑relevant supporting documents for customs clearance. Our Russian‑speaking technical team offers formwork layout calculation, panel‑quantity take‑off and remote erection guidance. As a full‑range formwork manufacturer, we supply wall, column and slab systems together to avoid mismatched accessories from mixed suppliers. Factory direct bulk supply plus dedicated China‑Central‑Asia over‑land logistics ensures stable delivery. Spare‑parts are continuously available for remote rental yards.
Closing Remarks
For contractors and form‑rental companies operating within CIS countries, TB63 Series Steel‑Ply System fills the market gap between expensive aluminum formwork and short‑life timber shuttering. It balances manual‑erection convenience, high reusability and competitive total‑cost‑of‑ownership. It is a practical modular wall‑and‑column forming choice for diverse construction demands across Russia and Central‑Asia.
