TB 120 steel formwork system is the heavy type with high-strength formwork. With torsion-resistant hollow-section steel frames combined with top-quality plywood, 120 steel frame wall formwork stands out for its extremely long life span and consistent concrete finish. The flexible modular design provides unlimited possible combinations in both width and height. The system has been popularly applied in North America, Europe, the Middle East,Southeast Asia, boasting its virtues among the most highly effective and safest modular formwork ever.

Composition: Q345B steel frame & (120-220g/m² paper-faced) plywood Length

Dimensions: 1200/2700/3300mm

Width Dimensions: 300/600/720/900/1200/2400mm

Features:

1. Universal for wall and column formwork, requiring only column formwork adapters

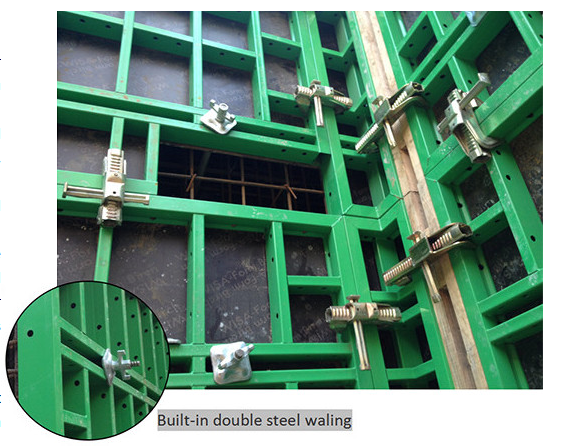

2 . Embedded horizontal double stiffeners

3 . Concrete lateral pressure: 57 kN/m²

4. Matrix structure

5. Highest assembly/disassembly efficiency with optimal safety

Reference Project

Rongmin Financial Center, Xi'an, China 2019

Reference Project

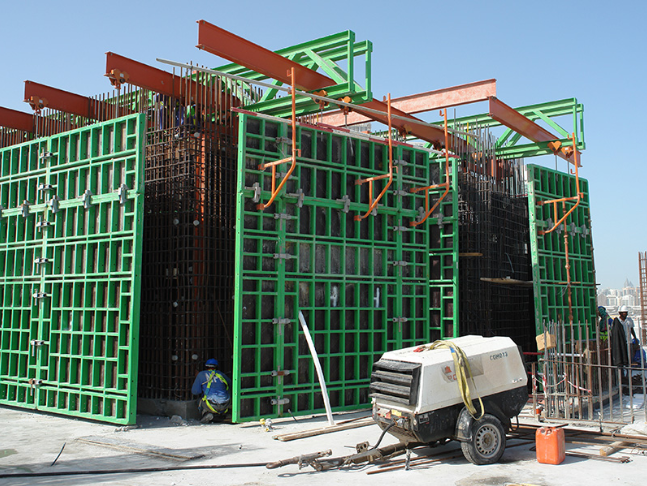

Dubai Project, UAE 2010
