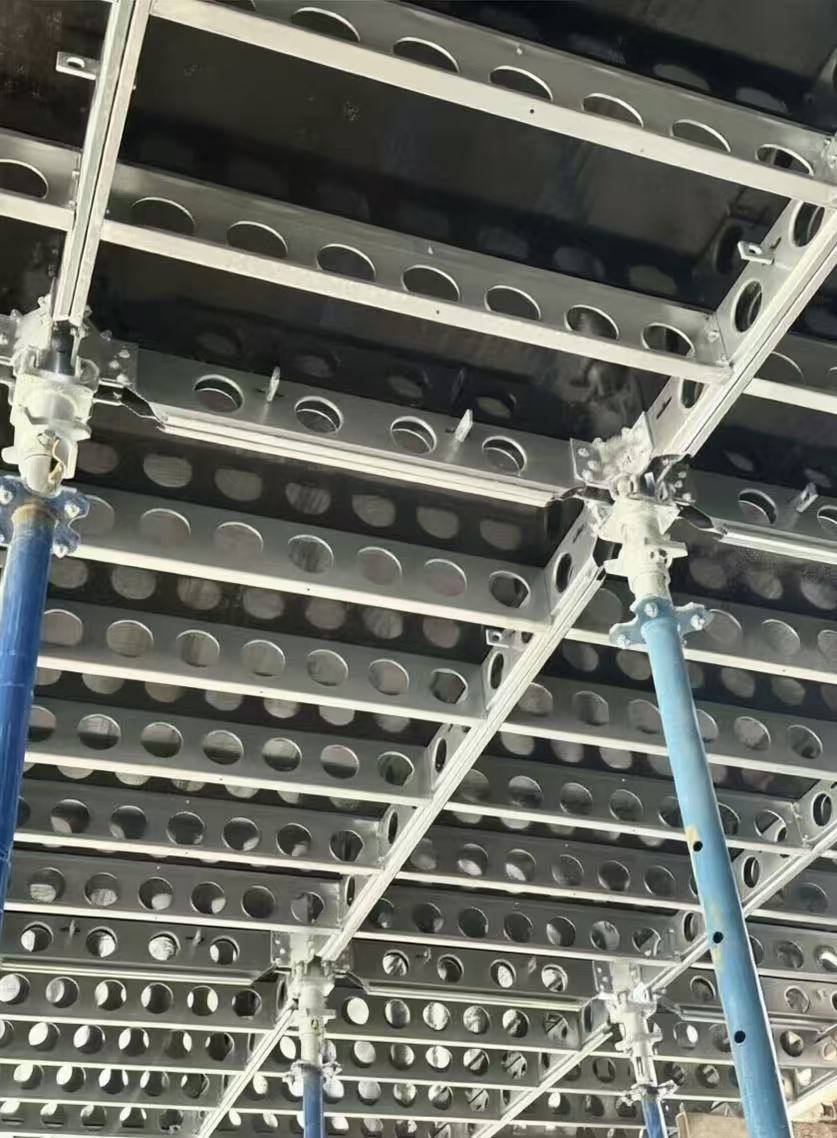

TABLE Deck with drophead is a strong, high-performance modular panel support system. Compared with traditional formwork, it is easier to buildformwork , dismantle early, and reduce economic costs. The steel structures characteristic of the formwork improve its operational performance. Uprightswith early-release heads makes it easier to set up and remove formwork, while supporting the back without deformation. This increases productivity.PanelUpright withs and columns with engineered automatic wind locks will not collapse due to the rigid interlocking system, even when built without a gantry.

Feature

• Q700 high-strength alloy steel

• Lightweight

• Rustproof treatment

• Innovation in the template industry

• Detachable for transport

Application:

• Floor panel system

• It can have a pendant light.

• Or without a hanging head

• Suitable for ring interlock and quick-installation systems (300X)

• Applied to crab-shaped support systems (500X)

The panels are not a welded frame structure, but rather use detachable parts like IKEA furniture, making them easy to transport anywhere.

Model	Dimensions (meters)	Area (square meters)	Weight (kg)
DP189	1.8 X0.9	1.62	32
DP186	1.8X0.6	1.08	22
DP99	0.9X0.9	0.81	16

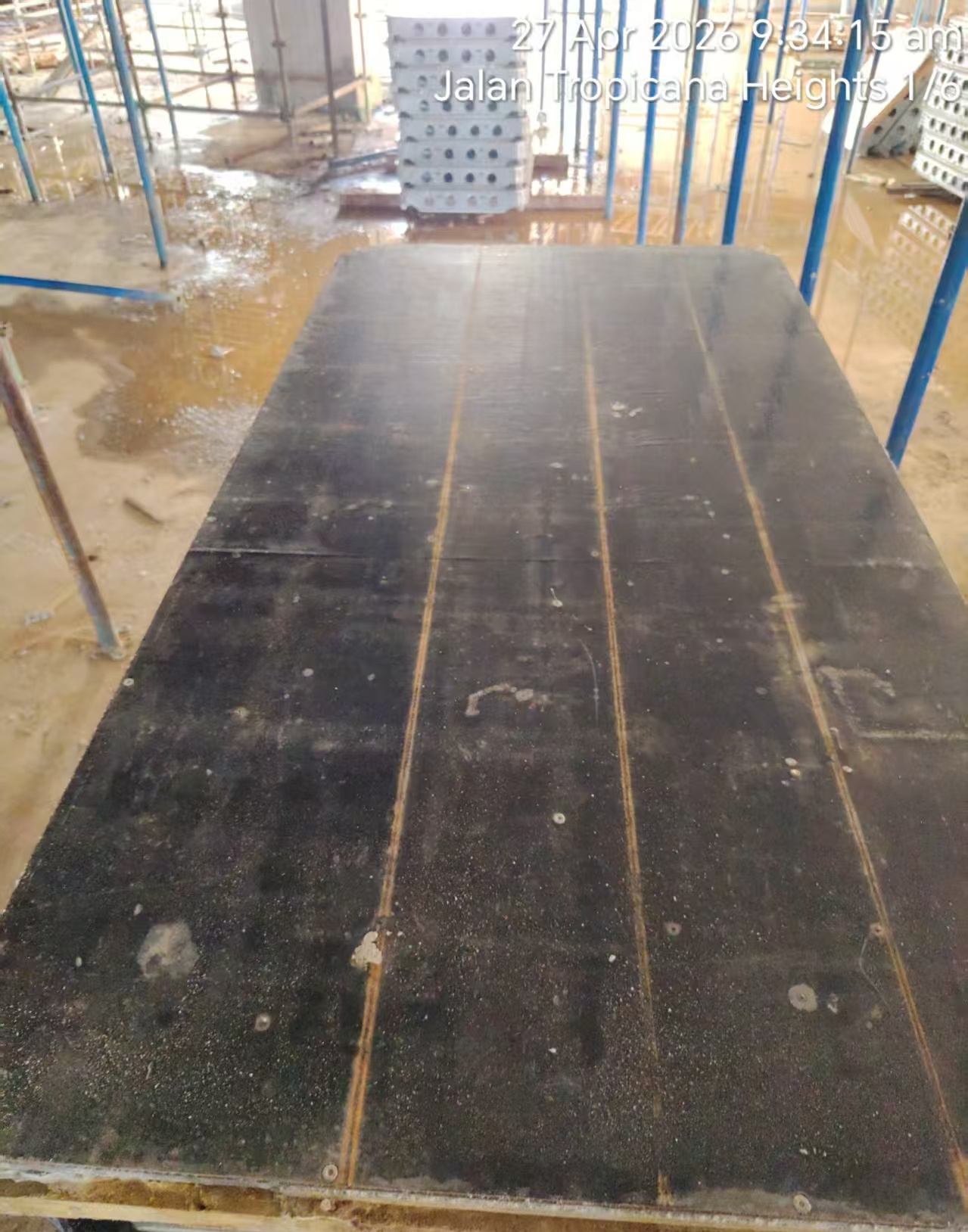

Reference Project

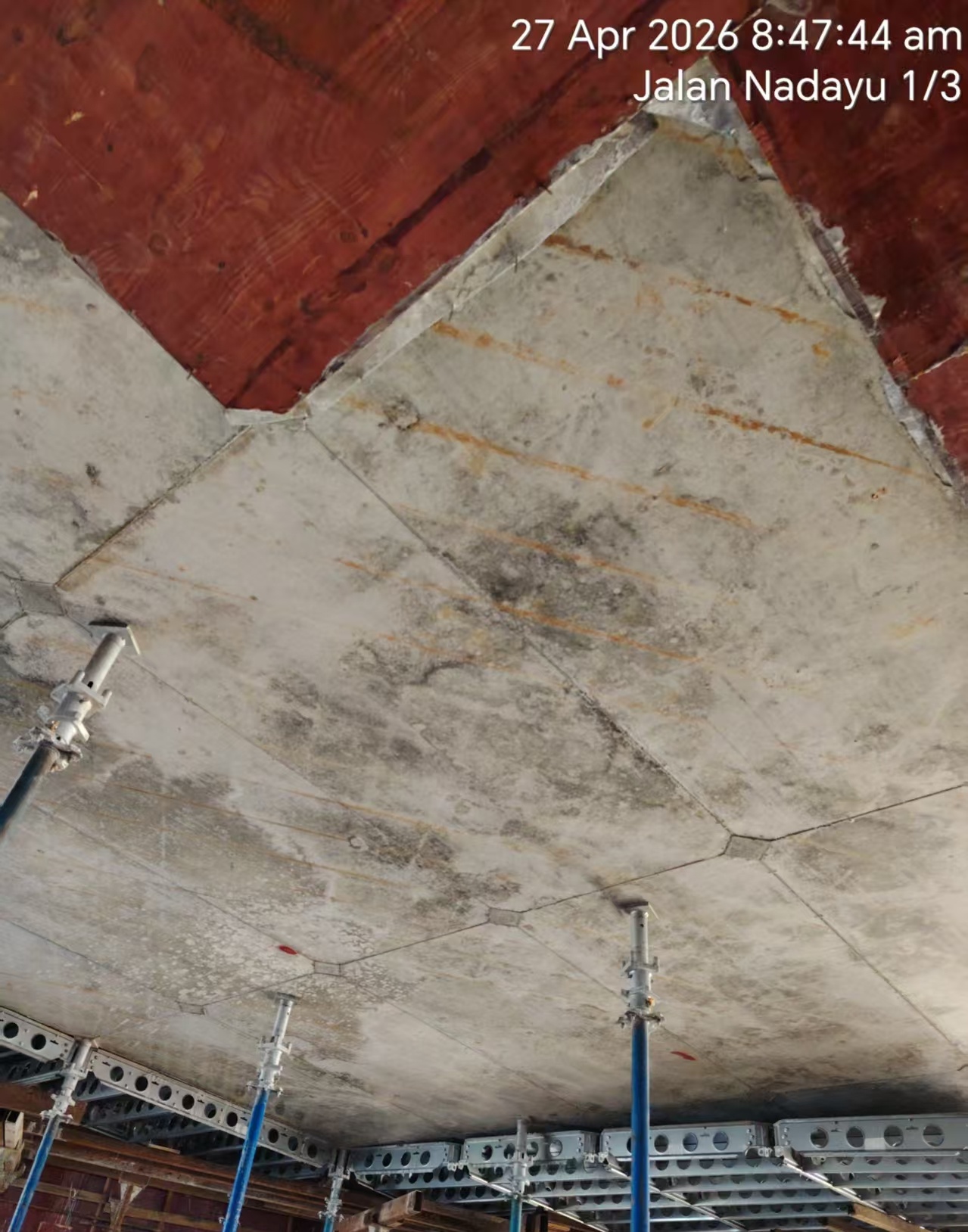

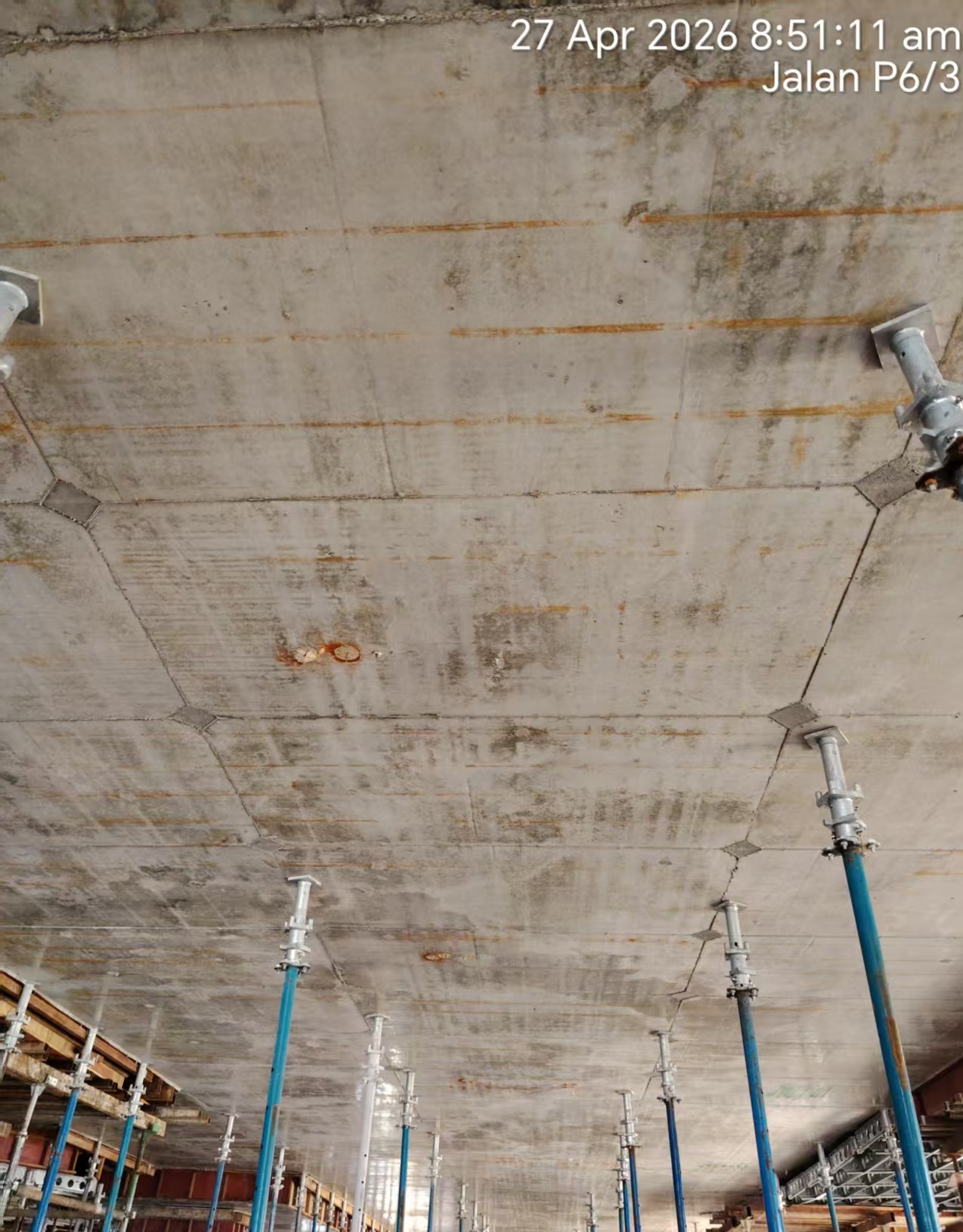

Stripping Effect
