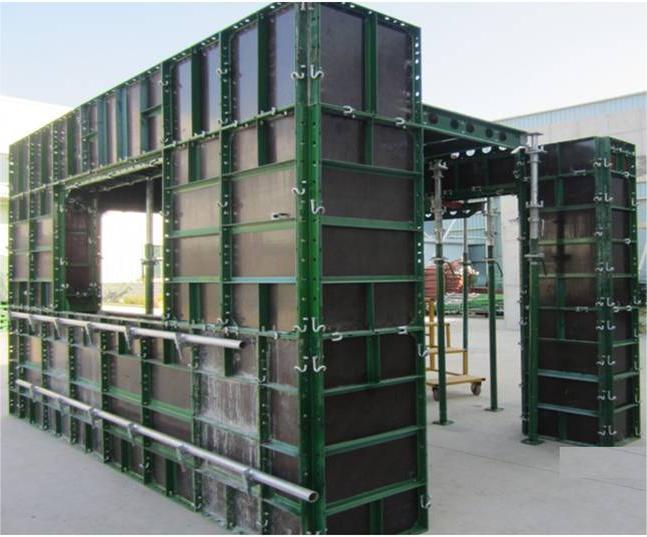

TB-63 Series Steel Frame Formwork System

Composition: Welded steel frames made of Q345B or 45 hot-rolled profiles (hot-dip galvanized or powder-coated surface) & Green Brand PVC plastic composite foam formwork with high turnover rates or high-quality bamboo/wood plywood for the bottom surface

SPECIFICATIONS:

Width Range: 100–600 mm (50 mm increment)

Height Range: 300–3000 mm (300 mm increment)

Frame Material: Q345B Structural Steel (GB/T 1591)

Panel Options: Plywood / PVC Composite Panel

Surface Treatment: Hot-dip Galvanized / Powder Coated

FEATURES:

1. Lightweight Design – Easy installation and handling

2. Fast Assembly – U-clamp connection, no bolts required

3. Modular System – Flexible sizes with strong interchangeability

4. High Reusability – Suitable for multiple turnover cycles

5. Efficient Construction – Reduces installation time and labor cost

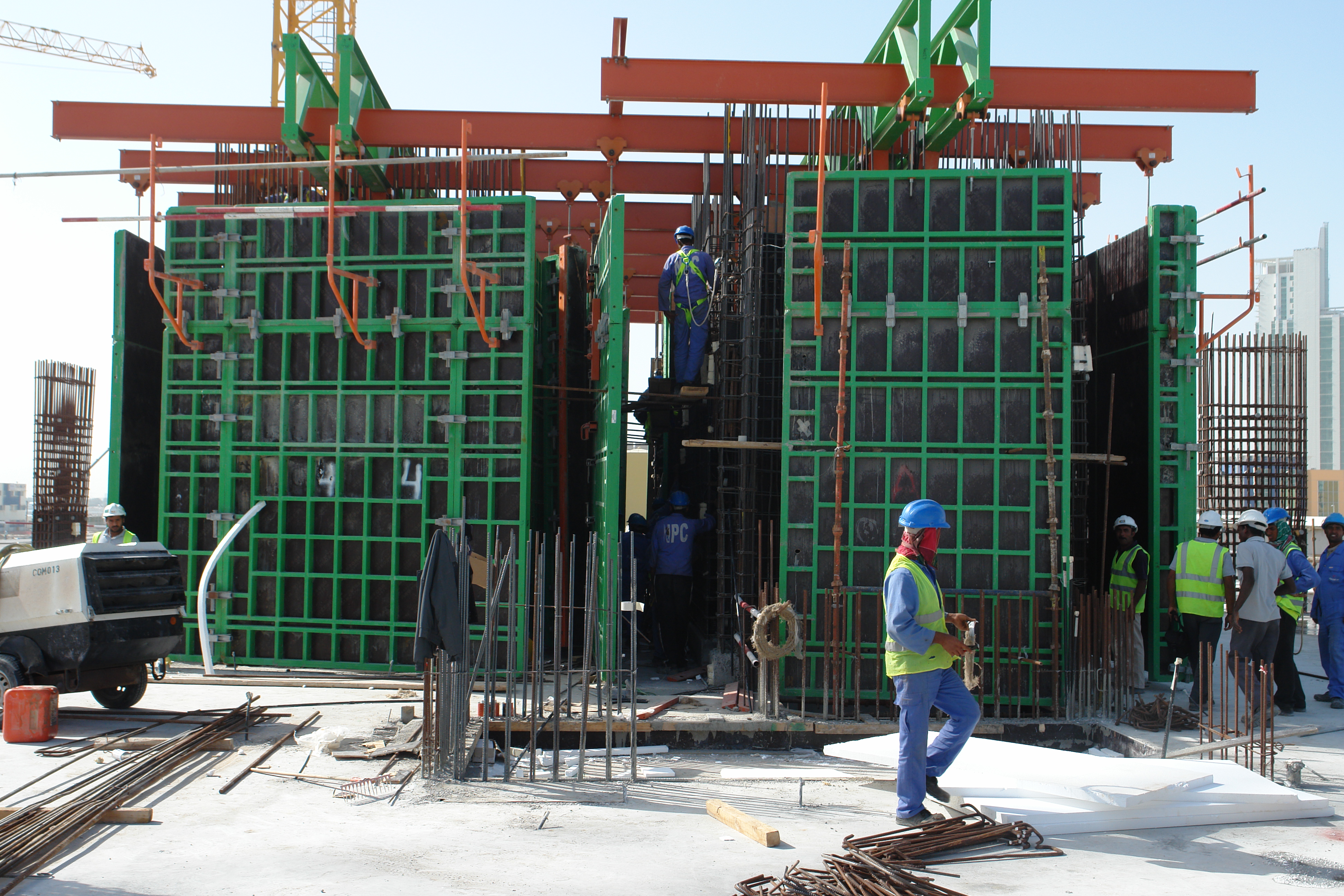

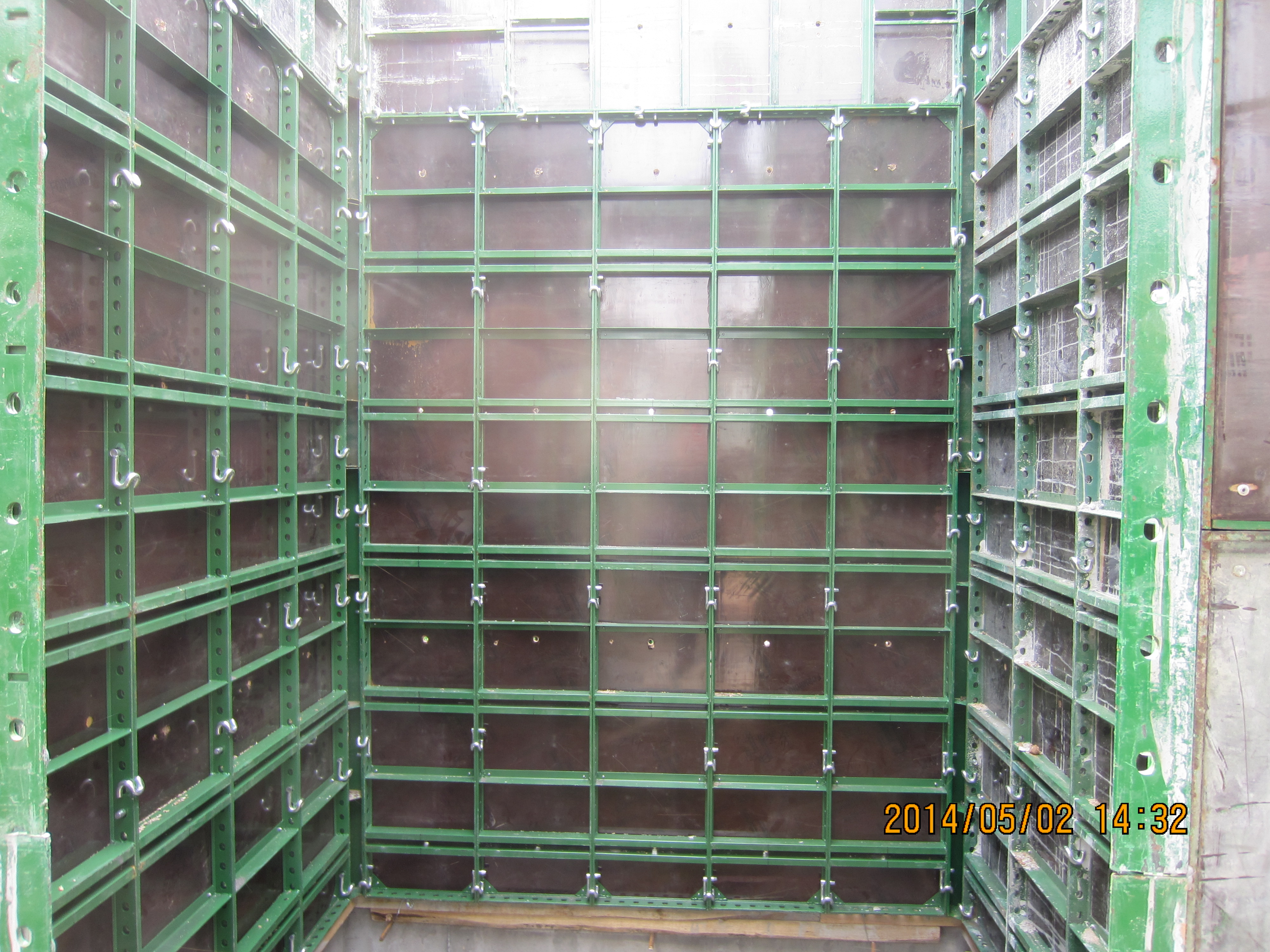

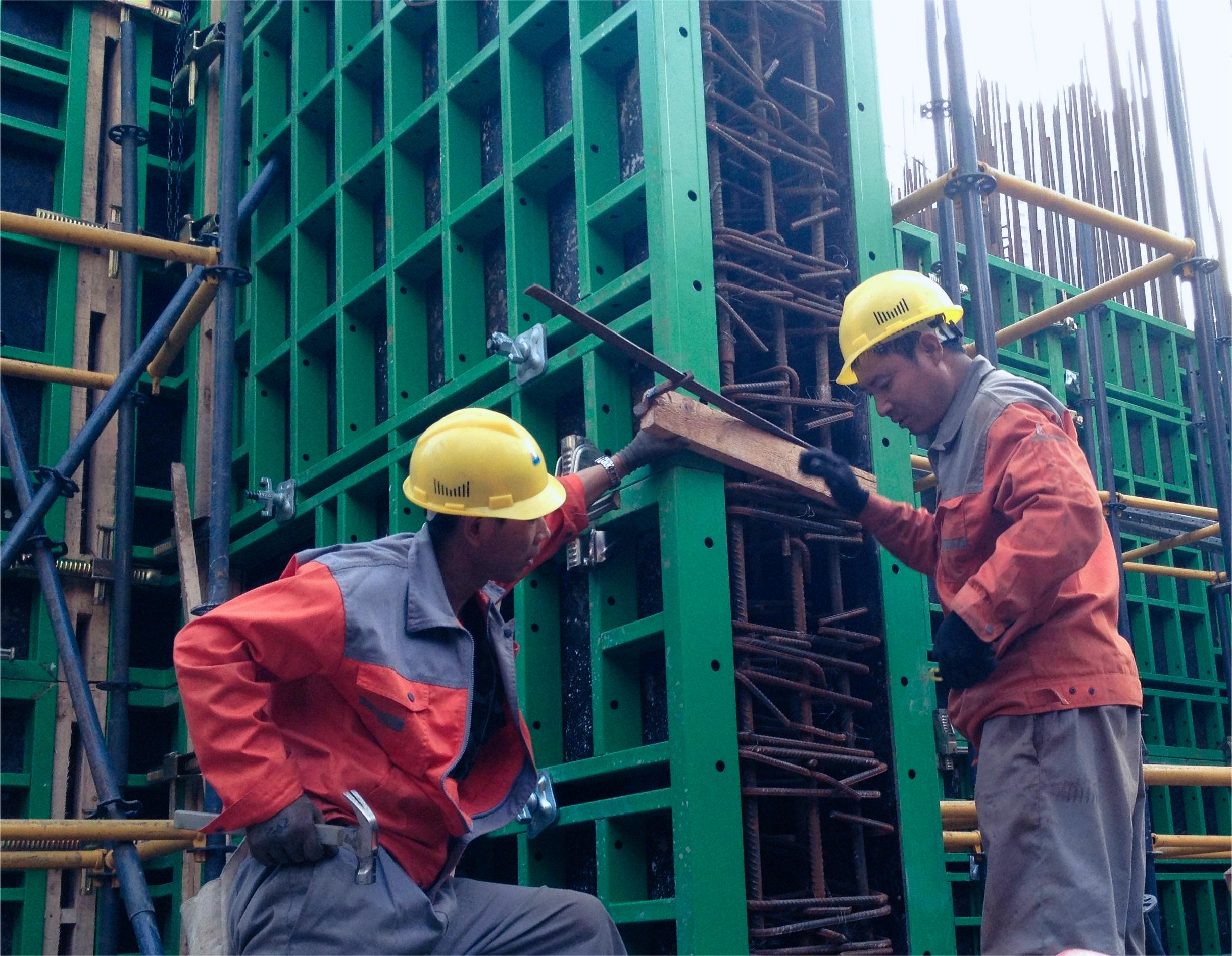

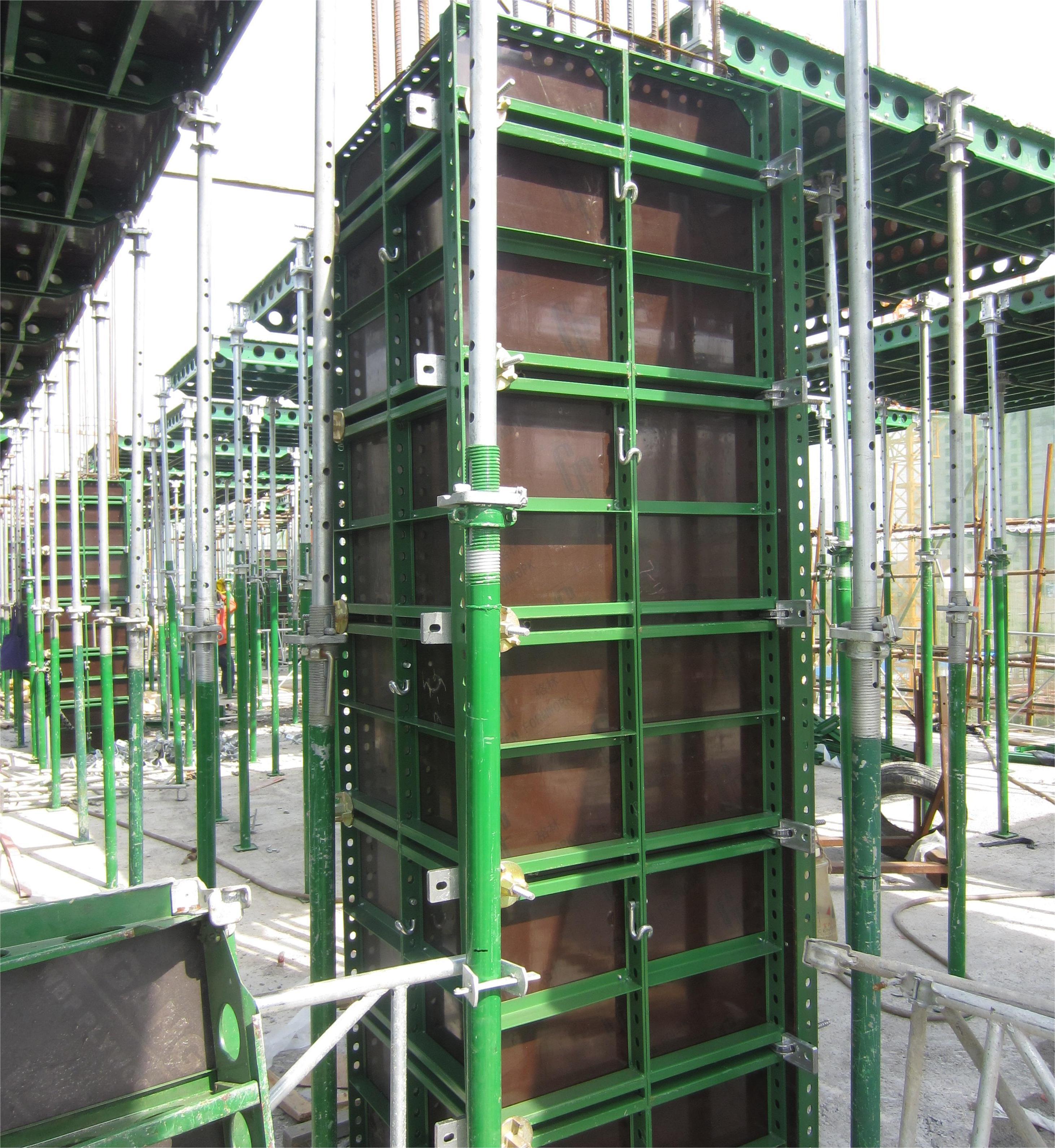

6. Wide Application – Suitable for walls, columns and slabs

TB-63 Component

U-type Clamp

Tie Rods and Nuts

Through-wall bolts and disc nuts

Wall-ceiling auxiliary beam

Wall Edge Beam Repair

Internal corner formwork

External corner formwork

Corner bead

Angle Waler

Wind Mill Connector

50 Connecting Blocks

Limit pin
